REAR BRAKE CALIPER COMPONENTS

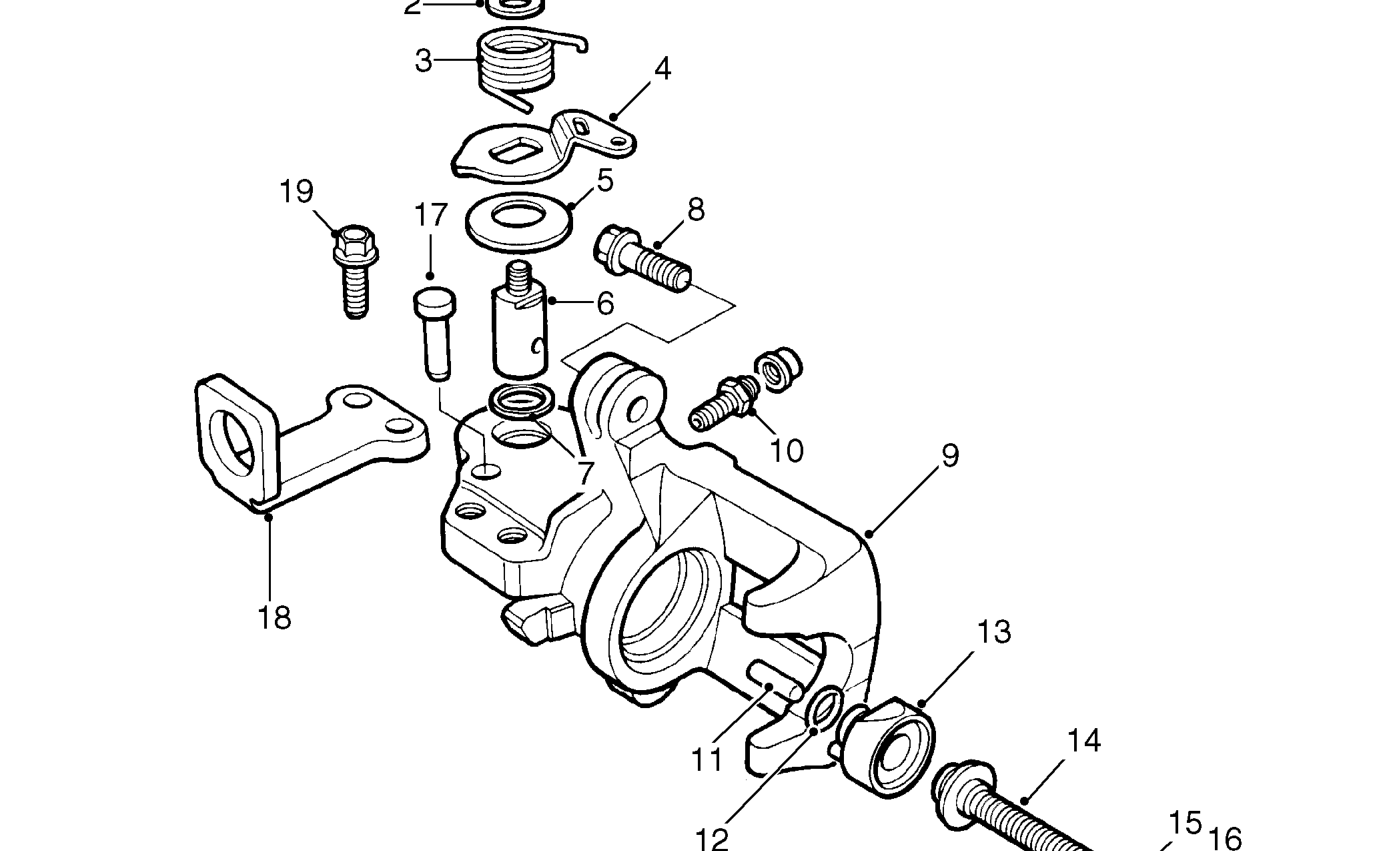

Rear brake caliper components
  1. Parking nut
  2. Spring washer
  3. Return spring
  4. Lever
  5. Cam boot
  6. Cam
  7. Cam washer
  8. Caliper screw
  9. Caliper body
  10. Bleed screw
  11. Rod
  12. ’O’ ring
  13. Sleeve piston
  14. Adjusting bolt
  15. Bearing
  16. Spacer
  17. Bracket pin
  18. Handbrake cable abutment
  19. Bracket bolt
