MASTER CYLINDER COMPONENTS - NON ABS

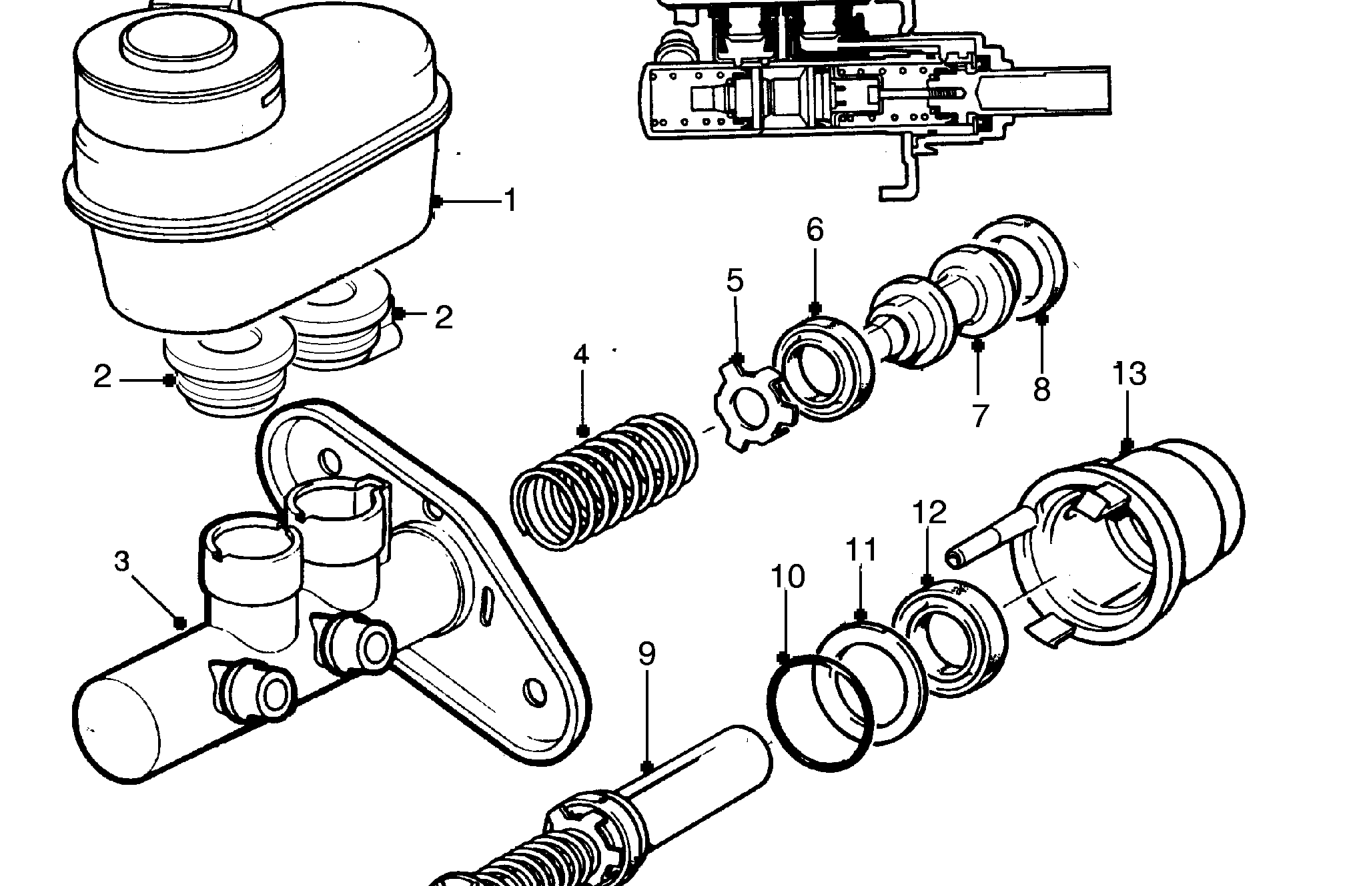

Master cylinder components - non abs
  1. Brake fluid reservoir
  2. Seals
  3. Cylinder body
  4. Spring
  5. Seal support
  6. Seal
  7. Secondary piston
  8. Seal
  9. Primary piston assembly
  10. ’O’ ring
  11. Vacuum seal backing ring
  12. Vacuum seal
  13. Transfer housing
