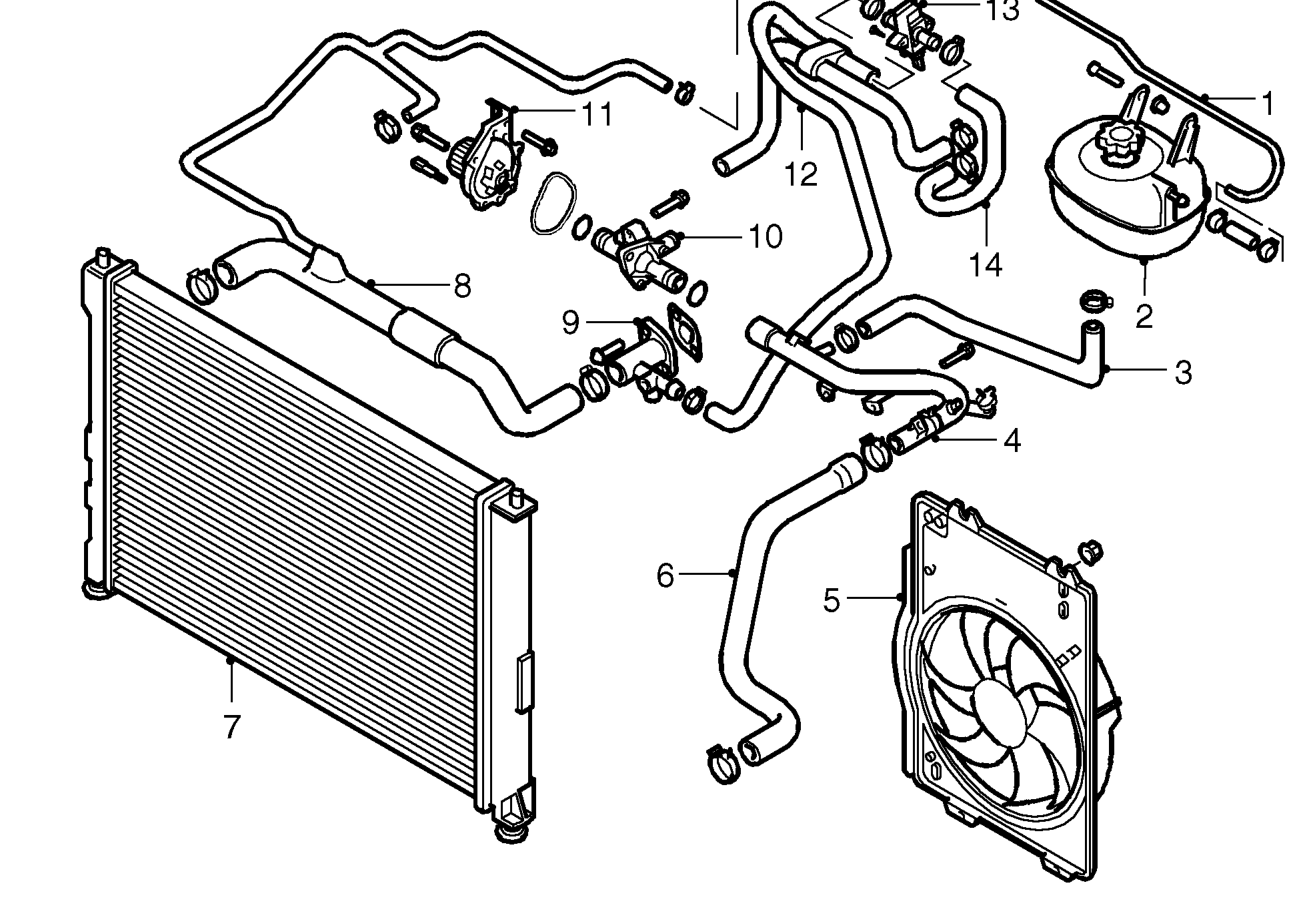

COOLING SYSTEM COMPONENTS - ’K16’

1. Pipe - expansion tank to radiator
2. Expansion tank
3. Hose - expansion tank return
4. Pipe - bottom hose to thermostat
5. Cooling fan and cowl
6. Bottom hose
7. Radiator
8. Top hose
9. Coolant outlet elbow
10. Thermostat housing
11. Coolant pump
12. Hose - heater matrix return
13. Heater temperature control valve
14. Hose - heater matrix feed
