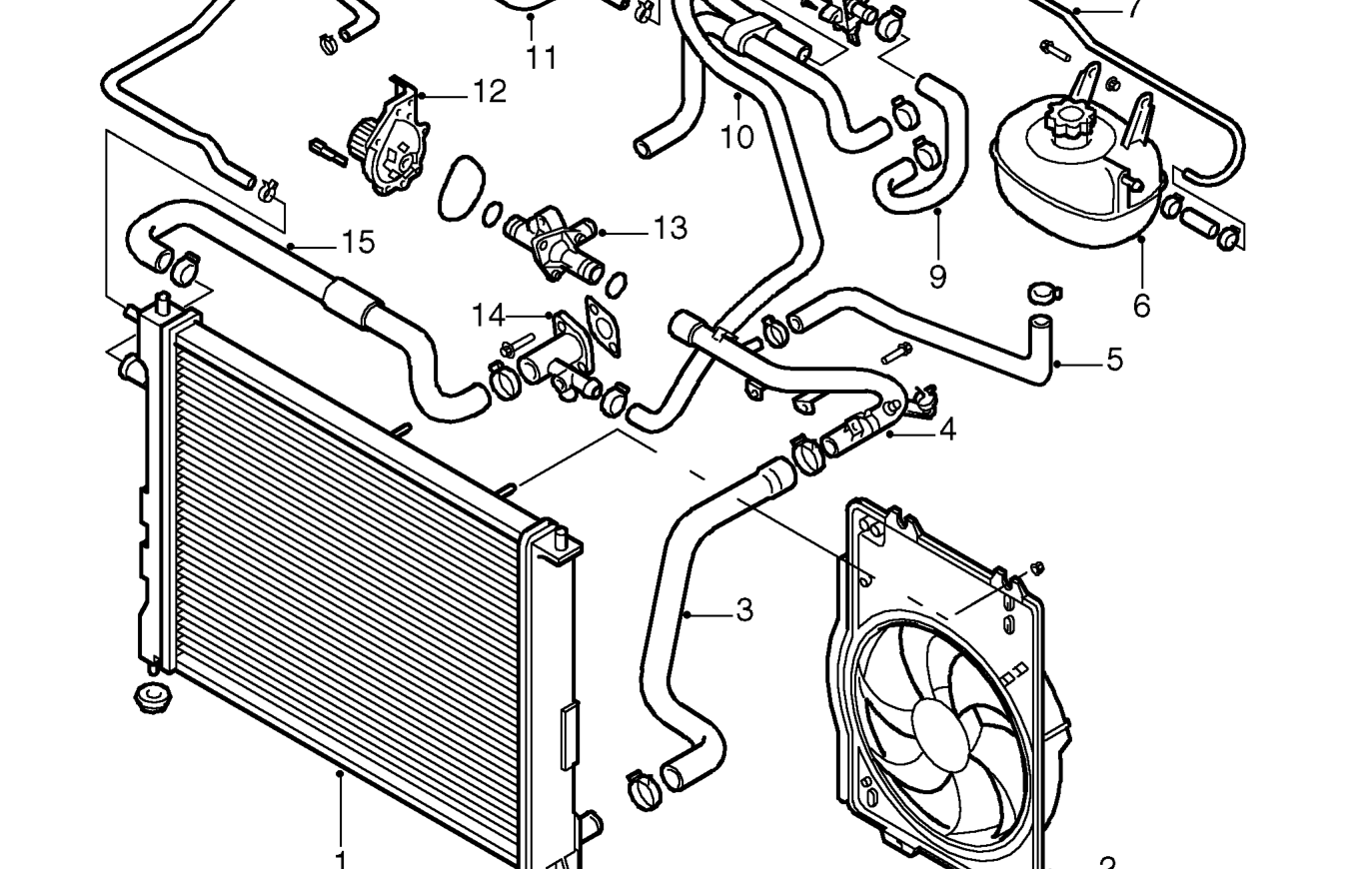

COOLING SYSTEM COMPONENTS - ’K8’

1. Radiator
2. Cooling fan and cowl
3. Bottom hose
4. Pipe - bottom hose to thermostat
5. Hose - expansion tank return
6. Expansion tank
7. Pipe - expansion tank to expansion hose
8. Heater temperature control valve
9. Hose - heater matrix feed
10. Hose - heater matrix return
11. Hose - expansion pipe to radiator
12. Coolant pump
13. Thermostat housing
14. Coolant outlet elbow
15. Top hose
