ElectricalAuxiliary drive belt - ’l’ series without air conditioning

Adjust

  1. Raise front of vehicle.

WARNING: Support on safety stands.

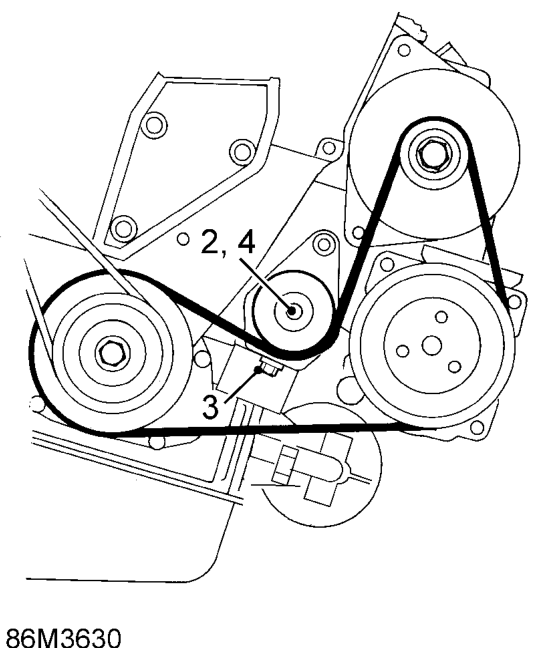

Raise front of vehicle.
  1. Loosen drive belt tensioner pulley securing bolt.
  2. Increase drive belt tension by turning the tension adjusting bolt clockwise.
  3. Tighten drive belt tensioner pulley securing bolt to 25 Nm.
  4. Recheck drive belt tension.
  5. Remove stand(s) and lower vehicle.

AUXILIARY DRIVE BELT - ’L’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.05

Check

  1. Turn steering to RH lock.
  2. Using a socket and extension bar on the crankshaft pulley bolt, rotate engine a sufficient number of turns to check condition of drive belt. Renew a drive belt that shows signs of wear, splitting or oil contamination.

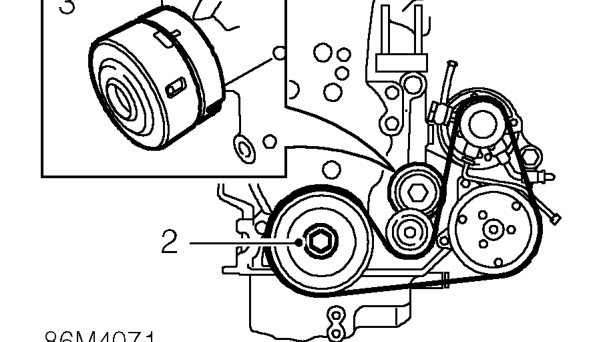

Auxiliary drive belt - ’l’ series without air conditioning – Using a socket and extension bar on the crankshaft pulley bolt, rotate engine a sufficient
  1. Check belt length, belt must be renewed before indicator reaches RH end of slot.
