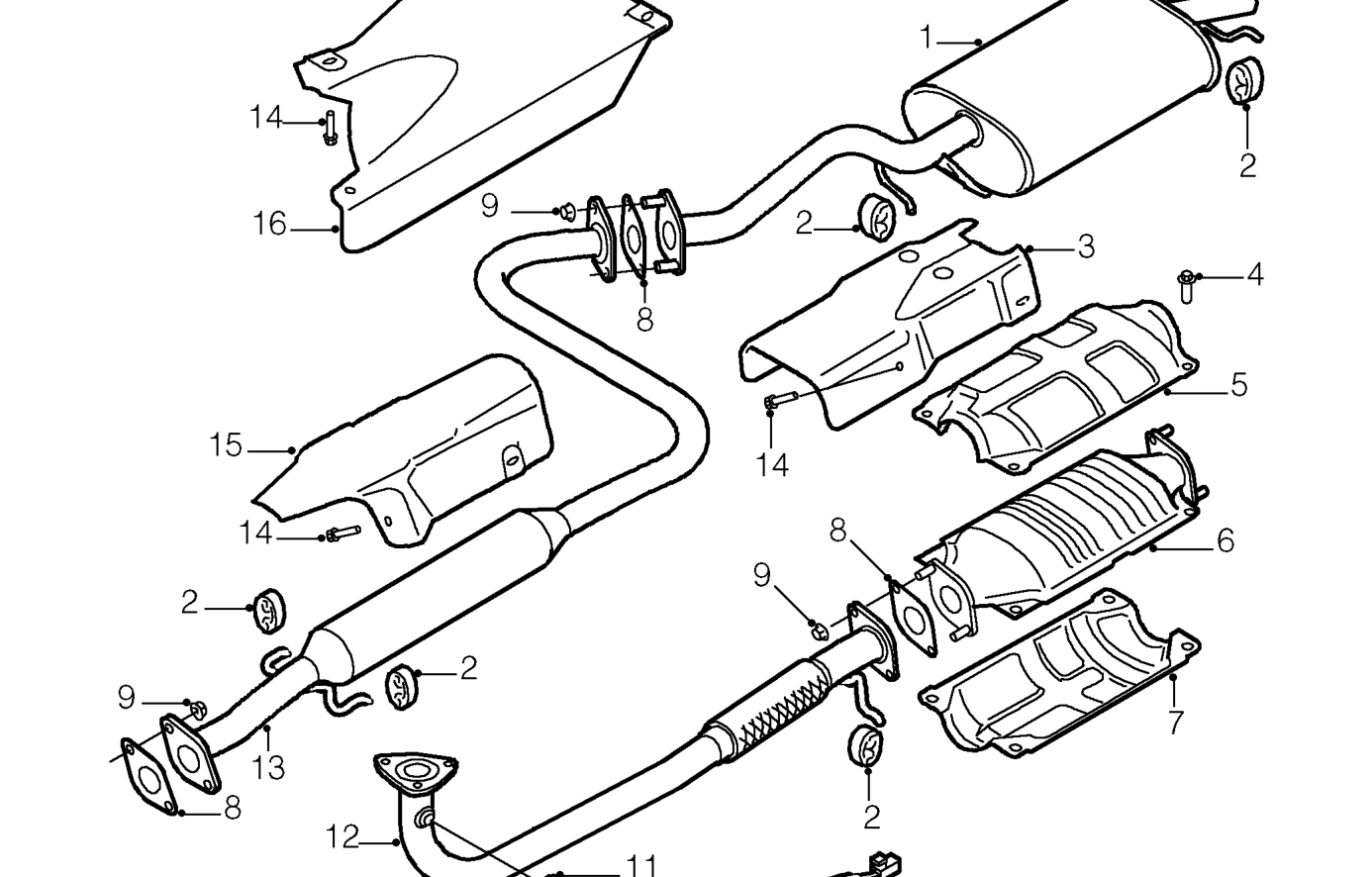

EXHAUST PIPE - ’K8’

1. Exhaust tail pipe
2. Mounting rubber - 6 off
3. Heat shield
4. Bolt - catalyst heat shield
5. Heat shield - upper - catalyst
6. Catalytic converter
7. Heat shield - lower - catalyst
8. Gasket - pipe flange - 3 off
9. Flange nut
10. Heated oxygen sensor
11. Sealing washer - heated oxygen sensor
12. Exhaust front pipe
13. Exhaust intermediate pipe
14. Bolt - heat shield fixing
15. Heat shield - intermediate pipe
16. Heat shield - tail pipe
