INLET AND EXHAUST MANIFOLD - ’K16’

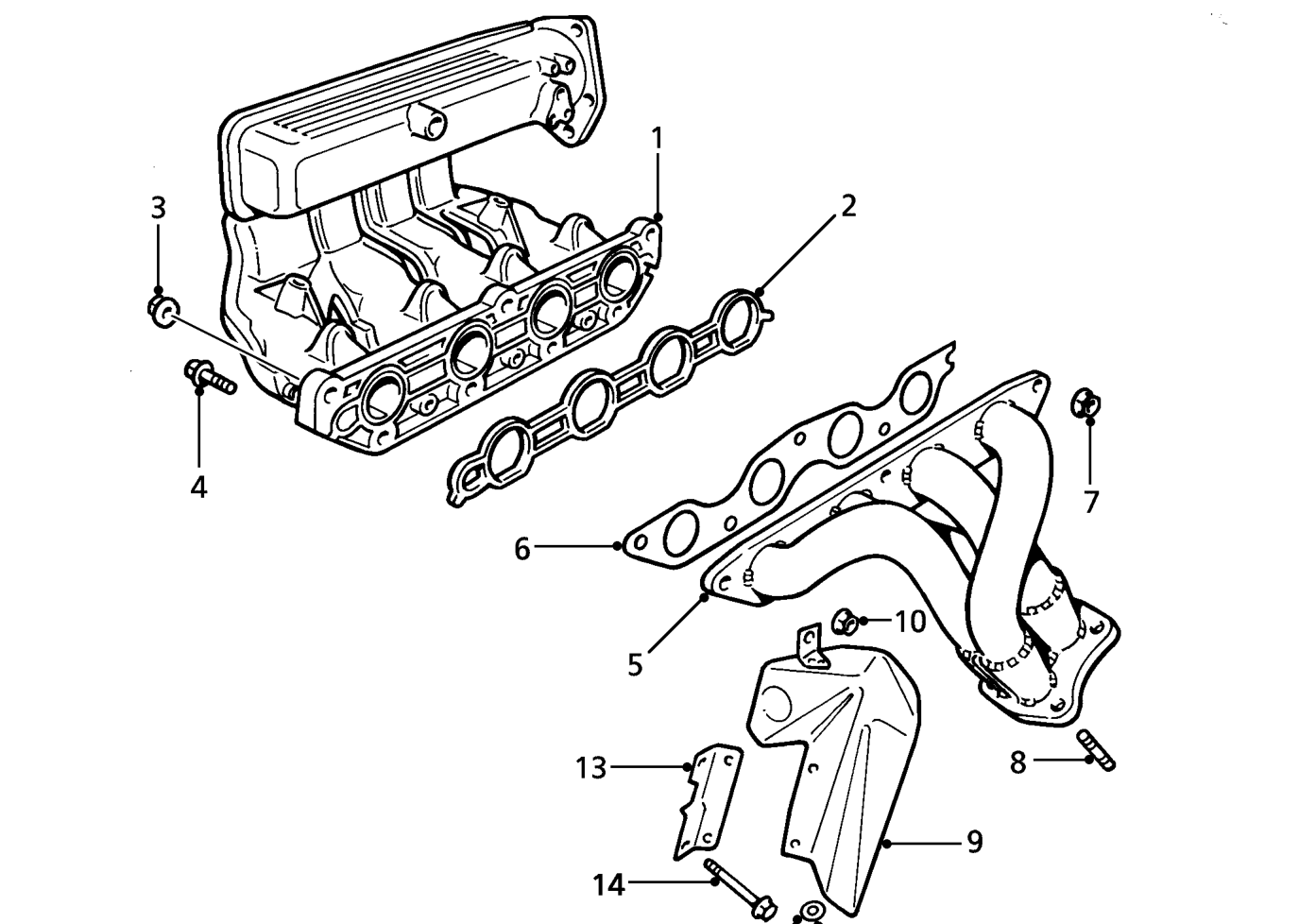

Inlet and exhaust manifold - ’k16’
  1. Inlet manifold - plastic
  2. Gasket - inlet manifold
  3. Flange nut - inlet manifold - 3 off
  4. Bolt - inlet manifold - 4 off
  5. Exhaust manifold - fabricated
  6. Gasket - exhaust manifold
  7. Flange nut - 5 off
  8. Stud - exhaust manifold flange - 4 off
  9. Heat shield
  10. Flange nut
  11. Flange bolt - 2 off
  12. Plain washer - 2 off
  13. Mounting bracket
  14. Flange bolt - 2 off - 2 tier mounting bracket
