Rear suspensionRear damper and spring

Rear damper and spring

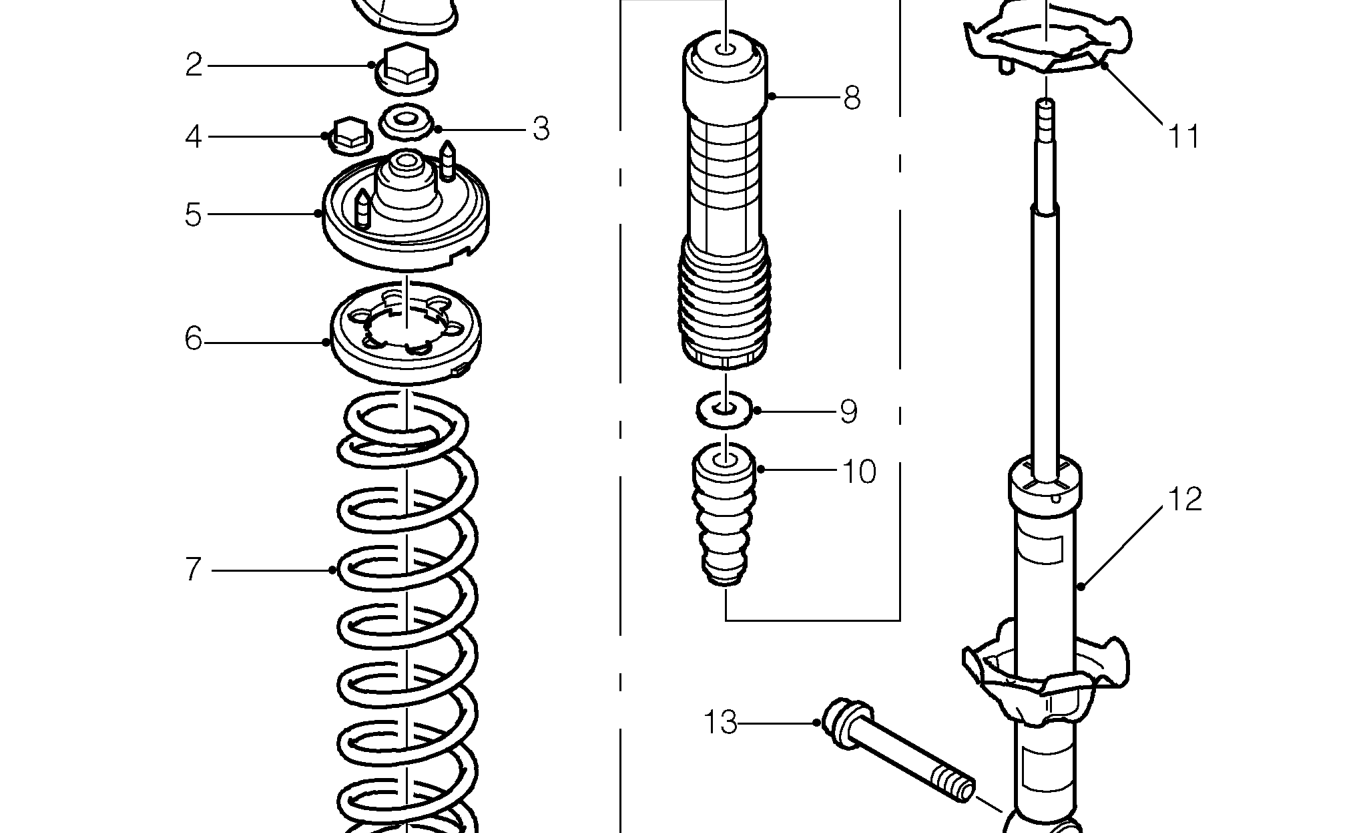

Rear damper and spring
  1. Mounting cap - damper
  2. Locknut - damper
  3. Washer - damper mounting
  4. Locknut - damper to body
  5. Plate - upper assembly mounting
  6. Rubber - upper spring mounting
  7. Coil spring
  8. Dust cover assembly
  9. Plate - bump stop
  10. Bump stop
  11. Rubber - lower spring mounting
  12. Damper unit
  13. Bolt - damper to ’H’ frame
