REAR SUSPENSION COMPONENTS

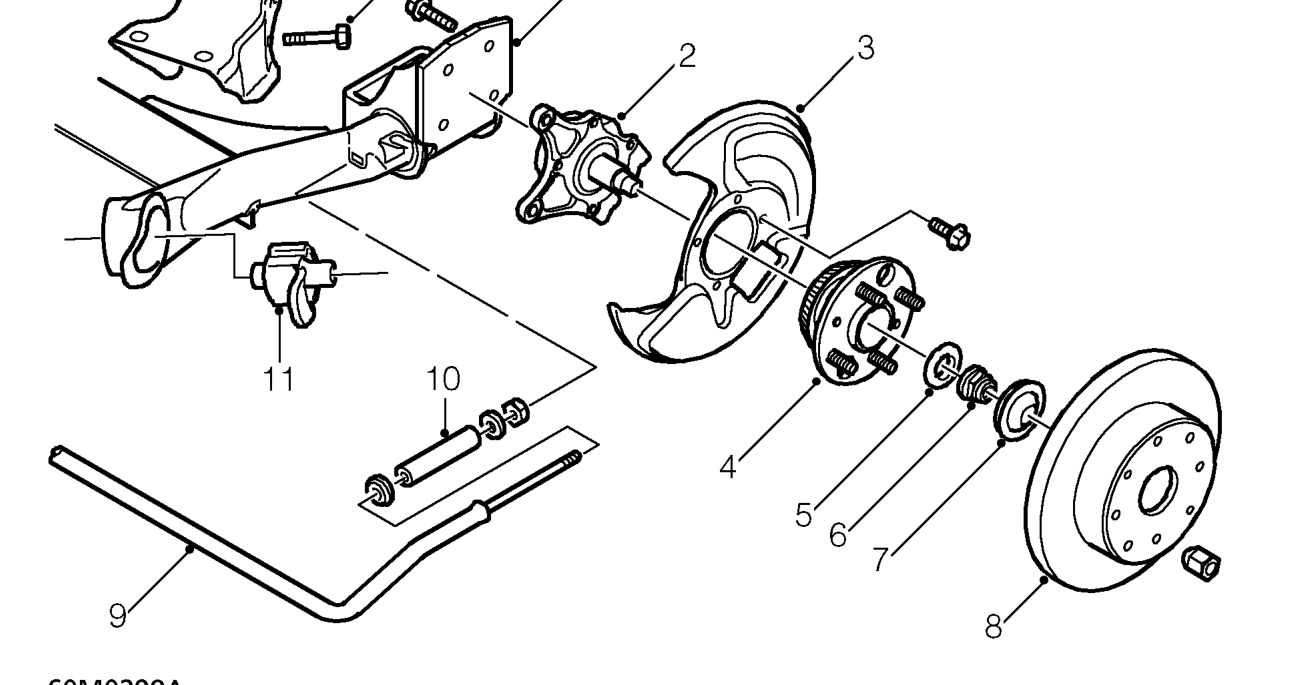

Rear hub and bearing - models with disc brakes

Rear hub and bearing - models with disc brakes
  1. ’H’ frame
  2. Stub axle
  3. Shield - disc
  4. Hub
  5. Spacer
  6. Nut
  7. Dust cover
  8. Brake disc
  9. Anti-roll bar (where fitted)
  10. Collar - anti-roll bar
  11. Pivot bush - ’H’ frame
  12. ’H’ frame mounting bracket
  13. Bolt - pivot bush to mounting bracket
