Power steering pump drive belt - ’k’ series

POWER STEERING PUMP DRIVE BELT - ’K’ SERIES

Service repair no - 57.20.01

Check

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.

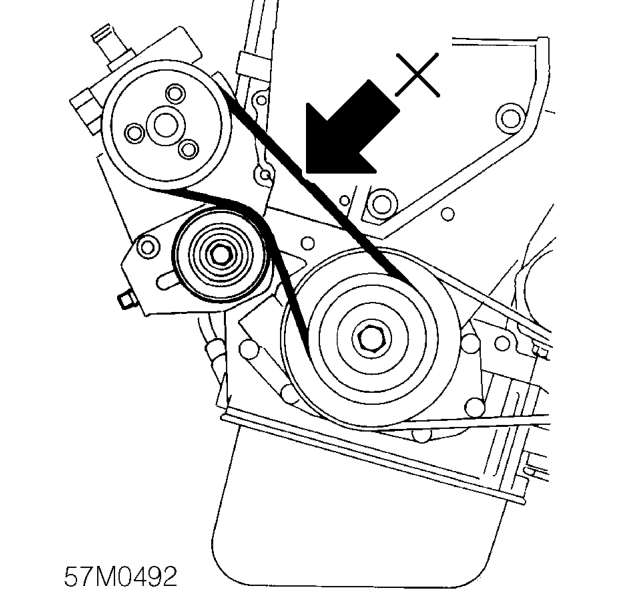

3. Apply a force of 98 Nm, 10 kg to the steering drive belt at position ’X’ and measure the deflection between the crankshaft pulley and power steering pump pulley. Drive belt deflection: Used belt = 7.5 - 8.5 mm New belt = 5.5 - 8.5 mm

Adjust

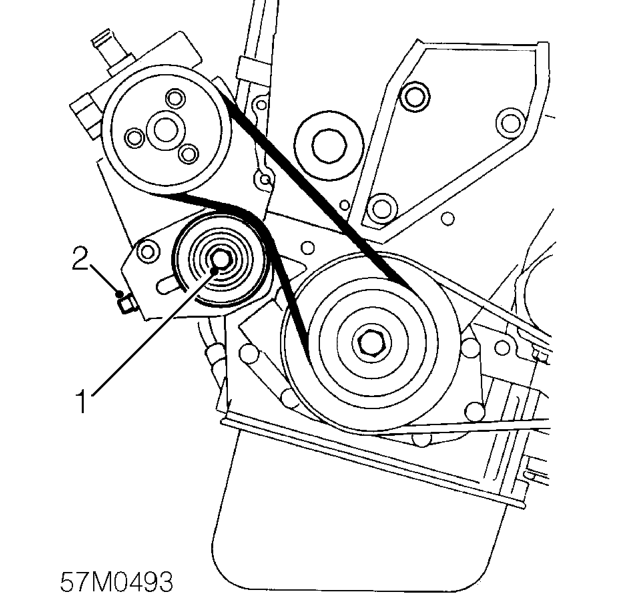

1. Loosen drive belt tensioner pulley securing bolt.
2. Increase drive belt tension by turning the tension adjusting bolt anti-clockwise.
3. Tighten drive belt tensioner pulley securing bolt to 25 Nm.
4. Recheck drive belt tension.
5. Remove stand(s) and lower vehicle.
