MANUAL STEERING RACK

Service repair no - 57.25.01

Remove

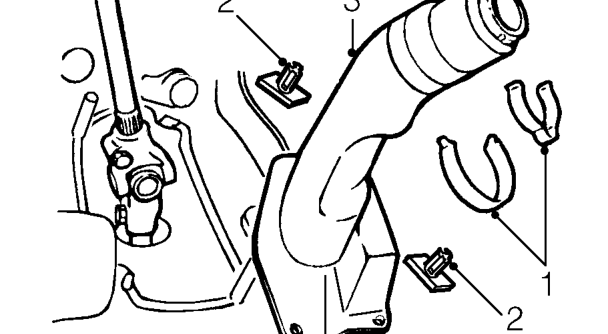

Manual steering rack – Service repair no - 57.25.01
  1. Remove 2 clips securing steering column universal joint cover.
  2. Pull back drivers footwell carpet and remove 2 studs securing cover to floor.
  3. Remove cover.
  4. Align road wheel to straight ahead position and remove starter key from steering lock.

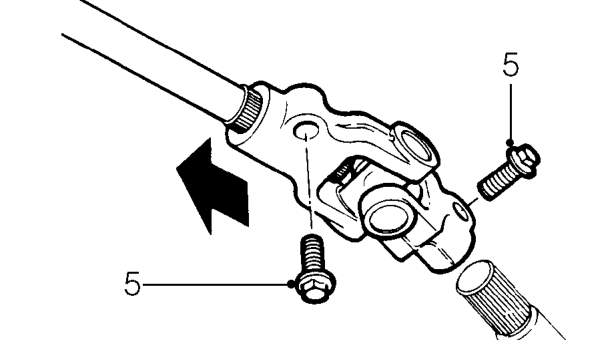

Manual steering rack – Align road wheel to straight ahead position and remove starter key from steering lock.
  1. Remove 2 bolts securing column universal joint. Slide joint up column and disconnect from steering rack pinion shaft.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

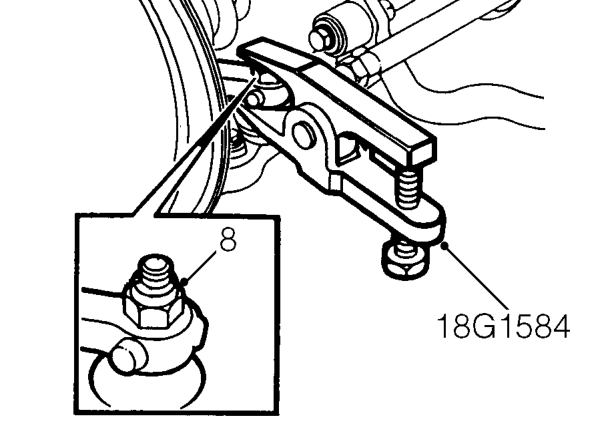

Manual steering rack – Remove road wheel(s).
  1. Remove nuts securing LH and RH track rod ends to front hubs, break taper joints using tool 18G 1584. Discard nuts.
  2. Note number of threads exposed from each track rod end locknut for reference.

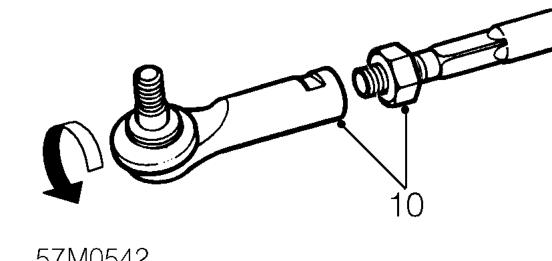

Manual steering rack – Note number of threads exposed from each track rod end locknut for reference.
  1. Loosen locknuts and remove track rod ends from steering rack.
