SteeringSteering lock

STEERING LOCK

Service repair no - 57.40.31

Remove

WARNING: SRS procedures must be followed and all precautions observed. See RESTRAINT SYSTEMS, Precautions.

  1. Remove steering column nacelle. See this section.
  2. 98MY on: Remove passive coil. See ELECTRICAL, Repairs.
Steering lock – 98MY on: Remove passive coil. See ELECTRICAL, Repairs.

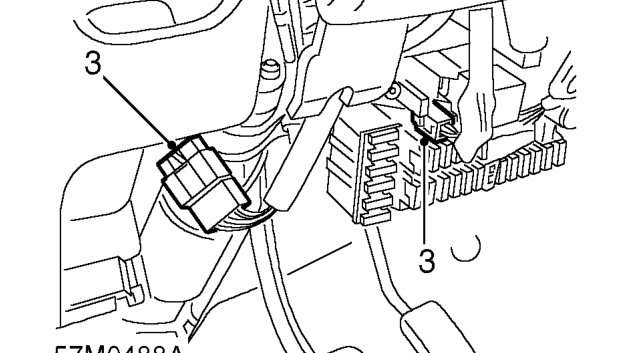

  1. Disconnect starter switch multiplugs from fuse box and main harness.
Steering lock – Disconnect starter switch multiplugs from fuse box and main harness.

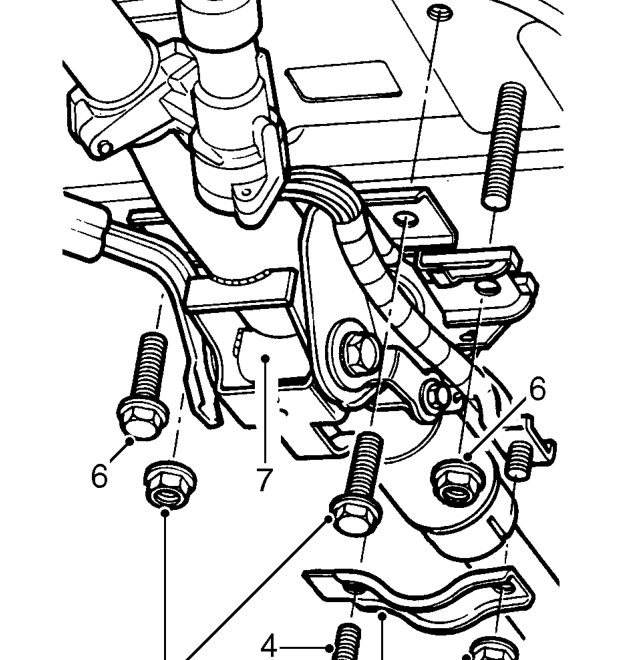

  1. Remove nut and bolt securing lower column clamp to pivot bracket.
  2. Remove clamp.
  3. Remove 2 flange nuts and 2 bolts securing column upper bracket.
  4. Lower the steering column assembly.
Steering lock – Lower the steering column assembly.

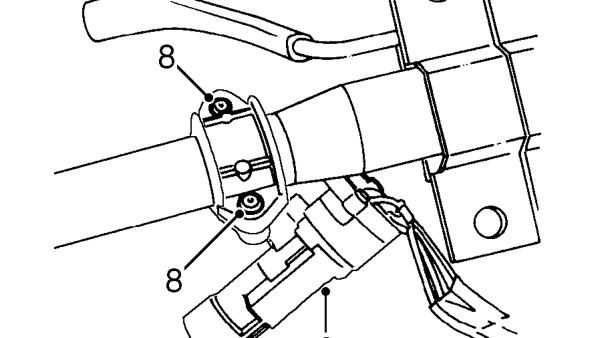

  1. Centre punch and drill out 2 shear bolts using a 5 mm drill.

CAUTION: Take care not to damage lock body if lock is to be refitted.

  1. Remove steering lock and bracket.
