POWER STEERING PUMP DRIVE BELT - ’K’ SERIES - WITH MANUAL TENSIONER

Service repair no - 57.20.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

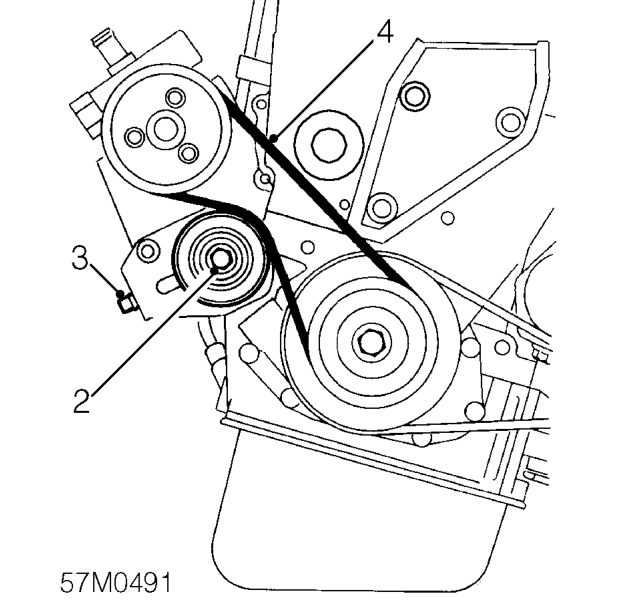

Power steering pump drive belt - ’k’ series - with manual tensioner – Raise front of vehicle.
  1. Loosen drive belt tensioner pulley securing bolt.
  2. Release drive belt tension by turning the tension adjusting bolt clockwise.
  3. Remove and discard drive belt.

Refit

  1. Clean pulley ’V’s.
  2. Fit new drive belt to crankshaft pulley and connect to power steering pump pulley. ensure pulley and belt grooves are correctly located.
  3. Adjust drive belt tension. See Adjustments.
  4. Rotate crankshaft one complete revolution clockwise.
  5. Re-tension drive belt by turning the tension adjusting bolt one complete turn anti-clockwise.
  6. Remove stand(s) and lower vehicle.

POWER STEERING PUMP DRIVE BELT - ’L’ SERIES

Service repair no - 57.20.02

The power steering pump is driven by the auxiliary drive belt. See ELECTRICAL, Repairs.
