POWER STEERING RACK - ’L’ SERIES

Service repair no - 57.10.01

Remove

Power steering rack - ’l’ series – Service repair no - 57.10.01

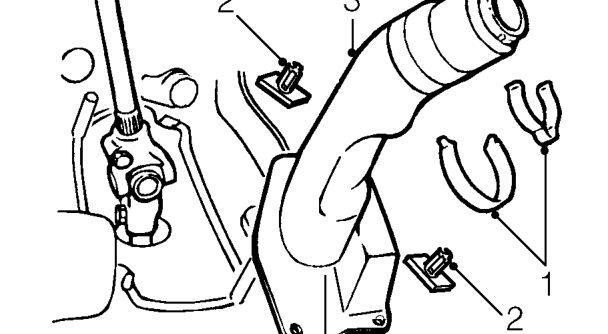

  1. Remove 2 clips securing column universal joint cover.
  2. Pull back drivers footwell carpet and remove 2 studs securing cover to floor.
  3. Remove cover.
  4. Align road wheels to straight ahead position and remove starter key from steering lock.
Power steering rack - ’l’ series – Align road wheels to straight ahead position and remove starter key from steering lock.

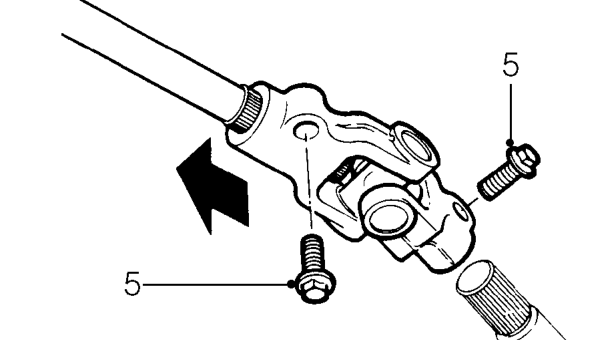

  1. Remove 2 bolts securing column universal joint. Slide joint up column and disconnect from steering rack pinion shaft.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove undertray. See BODY, Exterior fittings.
Power steering rack - ’l’ series – Remove undertray. See BODY, Exterior fittings.
  1. Remove bolt securing engine steady bar to engine.
  2. Move steady bar aside and remove 4 bolts securing steady bar mounting bracket to rear beam.
  3. Remove steady bar and mounting bracket.
  4. Position container beneath steering rack.
Power steering rack - ’l’ series – Position container beneath steering rack.

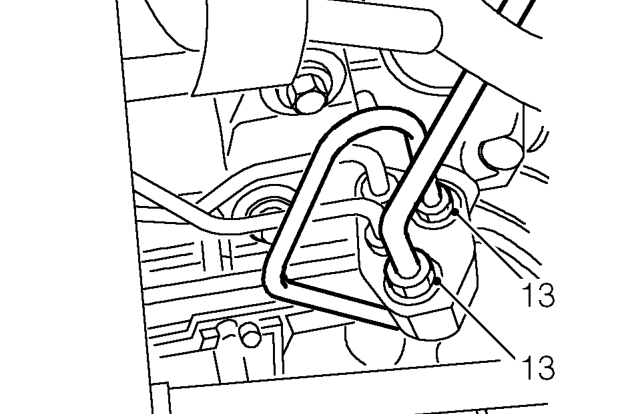

  1. Disconnect feed and return pipe unions from steering rack.

CAUTION: Plug the connections.
