Rover 200 Workshop Manual (1995-1999)22 · Steering
22 · Steering & suspension

Power steering rack - ’l’ series (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
SteeringPower steering rack - ’l’ series · page 2 of 3
Diagram

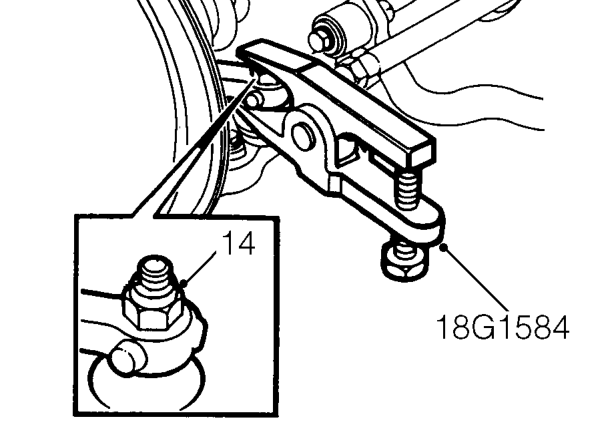

  1. Remove nuts securing LH and RH track rod ends to front hubs, break taper joints using tool 18G 1584. Discard nuts.

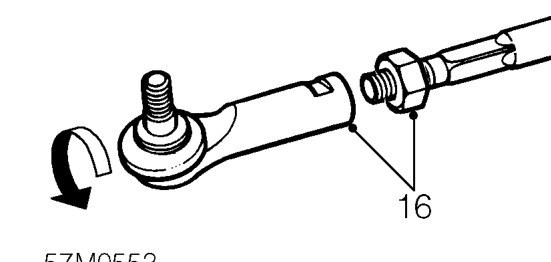

  2. Note number of threads exposed from each track rod end locknut for reference.
Note number of threads exposed from each track rod end locknut for reference.
  1. Loosen locknuts and remove track rod ends from steering rack.
  2. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

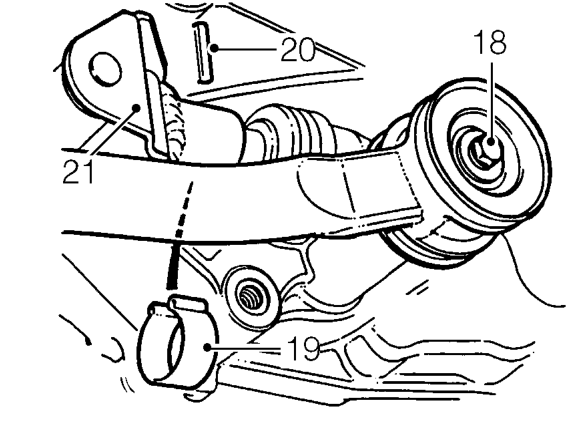

  1. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
  2. Remove clip securing selector rod roll pin.
  3. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
  4. Release selector rod from selector shaft.
Release selector rod from selector shaft.

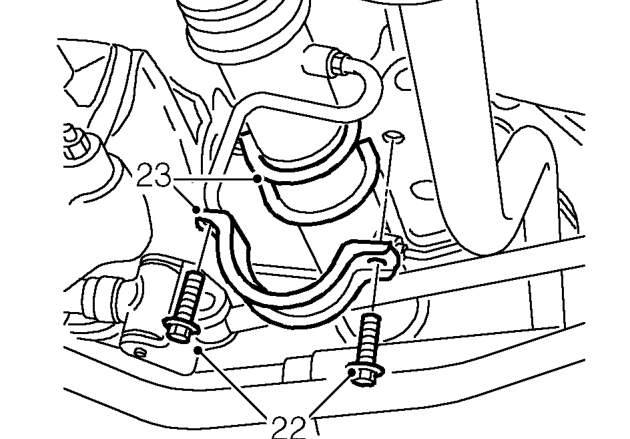

  1. Remove 2 bolts securing steering rack clamp.
  2. Remove clamp and collect rubber.
