STEERING COLUMN ASSEMBLY

Service repair no - 57.40.01

Remove

WARNING: SRS procedures must be followed and all precautions observed. See RESTRAINT SYSTEMS, Precautions.

  1. Remove rotary coupler. See ELECTRICAL, Repairs.

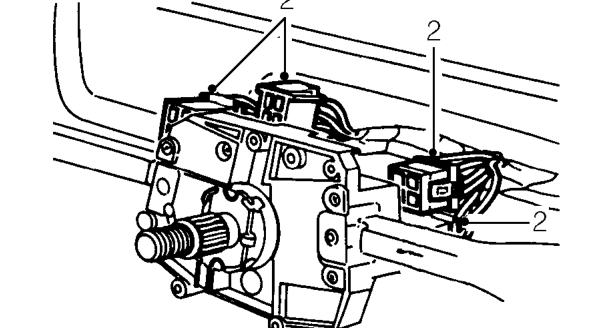

Steering column assembly – Remove rotary coupler. See ELECTRICAL, Repairs.
  1. Disconnect 4 multiplugs from switch pack.

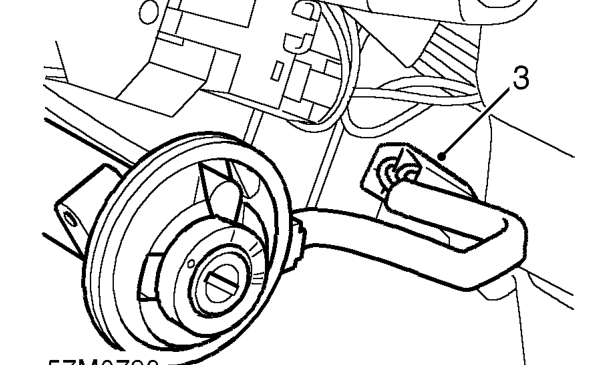

Steering column assembly – Disconnect 4 multiplugs from switch pack.
  1. 98MY on: Disconnect passive coil multiplug.

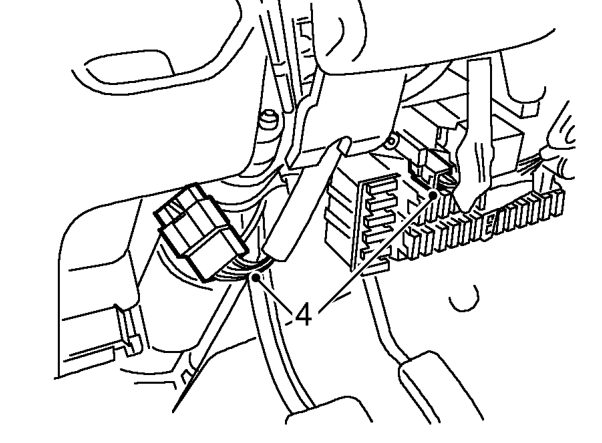

Steering column assembly – 98MY on: Disconnect passive coil multiplug.
  1. Disconnect starter switch multiplugs from fuse box and main harness.

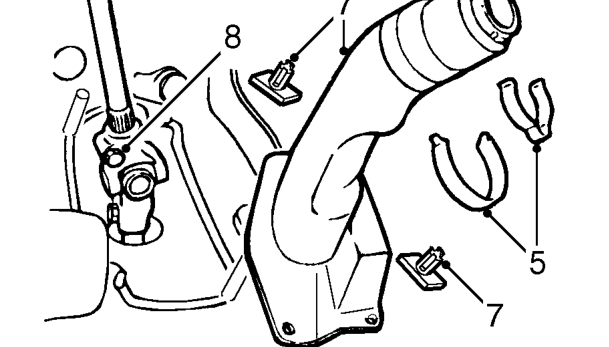

Steering column assembly – Disconnect starter switch multiplugs from fuse box and main harness.
  1. Remove 2 clips securing universal joint cover to column.
  2. Pull back drivers footwell carpet.
  3. Remove studs securing universal joint cover to floor and remove cover.
  4. Remove bolt securing universal joint to column.
  5. Remove nut and bolt securing lower column clamp to pivot bracket.
  6. Remove clamp.
  7. Remove 2 flange nuts and 2 bolts securing column upper bracket to underside of fascia.
  8. Remove column assembly.

Do not carry out further dismantling if component is removed for access only.
