Steering wheel

STEERING WHEEL

Service repair no - 57.60.01

Remove

1. Remove driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.

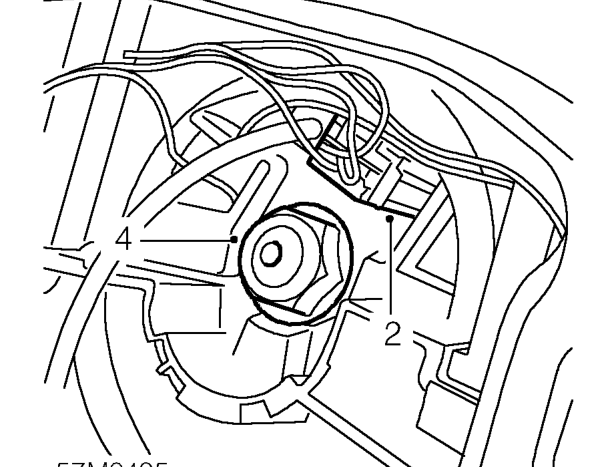

2. Disconnect multiplug from rotary coupler.
3. Centralise steering wheel with road wheels in straight ahead position.
4. Restrain steering wheel and loosen self-locking nut securing steering wheel to column.
5. Release steering wheel from column splines by rocking steering wheel from side-to-side and pulling with both hands.
6. Remove and discard self-locking nut.
7. Remove steering wheel.

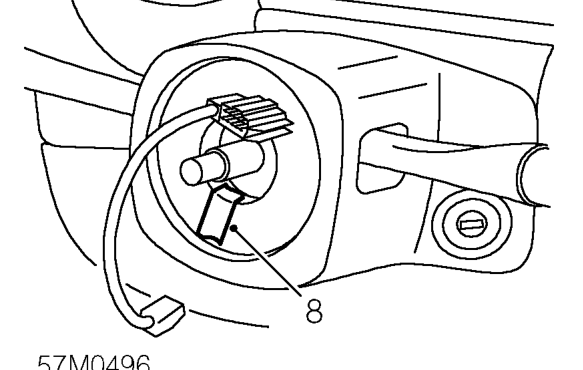

8. Attach tape across edge of rotary coupler to retain correct setting.

Refit

1. Remove retaining tape from rotary coupler.
2. Ensure road wheels are in straight ahead position and indicator cancelling cam are aligned horizontally.
3. Engage rotary coupler and fit steering wheel to column, ensure wheel spokes are horizontal.
4. Fit NEW self-locking nut, tighten to 50 Nm.
5. Connect multiplug to rotary coupler.
6. Fit driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.
