Power steering pump - ’l’ series models with air conditioning

Refit

1. Clean mating face of power steering pump and coolant pump housing.
2. Position power steering pump to coolant pump housing and align drive lugs with those on the coolant pump.
3. Tighten 2 long bolts securing power steering pump to coolant pump housing until finger tight.
4. Fit 3 short bolts securing support bracket to power steering pump and coolant pump housing.
5. Tighten power steering pump to coolant pump housing bolts to 25 Nm.
6. Remove plugs from power steering pump and hoses.
7. Lubricate and fit new ’O’ ring to high pressure hose union.
8. Connect high pressure hose to pump and tighten union to 20 Nm.
9. Connect power steering pump feed hose to fluid reservoir and secure with clip.
10. Fit front beam. See FRONT SUSPENSION, Repairs.
11. Fit alternator. See ELECTRICAL, Repairs.
12. Refill power steering reservoir and bleed system. See Adjustments.

POWER STEERING PUMP - ’L’ SERIES MODELS WITH AIR CONDITIONING

Service repair no - 57.20.14/20

Remove

1. Remove undertray. See BODY, Exterior fittings.

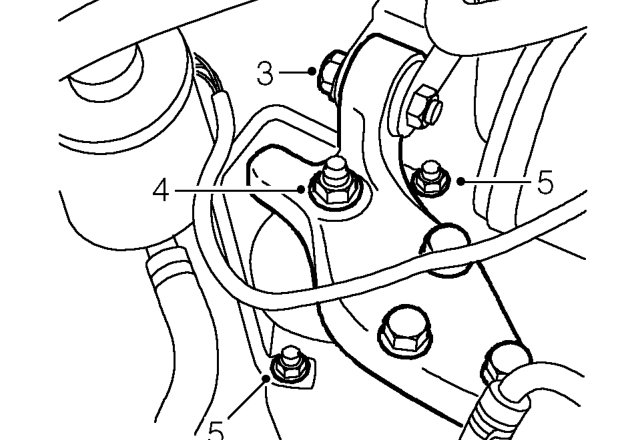

2. Fit wooden block to jack and position jack to support engine.

3. Remove through bolt securing RH steady bar to engine mounting bracket.
4. Remove nut securing mounting bracket to engine mounting.
5. Loosen 2 nuts securing restraint bar to body.
6. Raise engine to gain access to Torx screws securing pulley to power steering pump.
