Power steering pump - ’l’ series models without air conditioning (page 2 of 2)

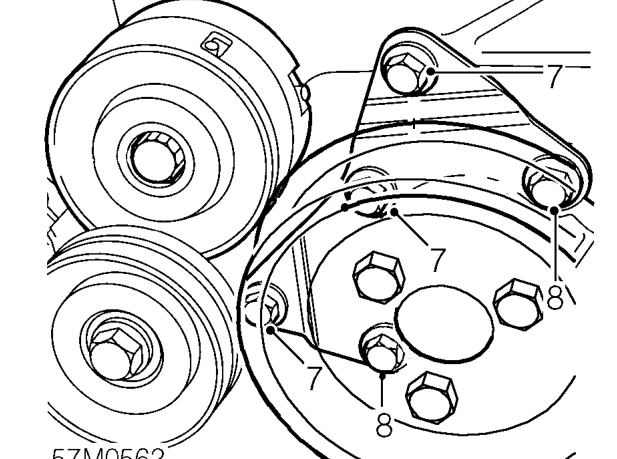

7. Remove 3 short bolts securing support bracket to power steering pump and coolant pump housing.
8. Loosen 2 long bolts securing power steering pump to coolant pump.
9. Remove power steering pump.

Do not carry out further dismantling if component is removed for access only.

10. Release clip and remove hose from pump.

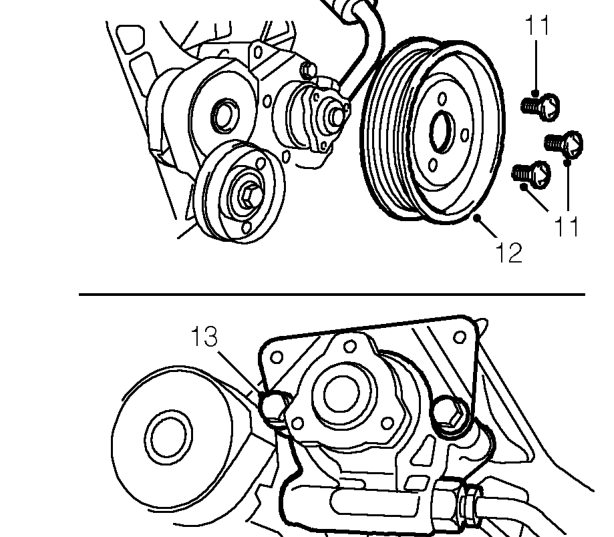

11. Holding power steering pump in a soft jawed vice, restrain pulley and remove 3 Tx30 Torx screws securing pulley to pump.
12. Remove pulley from pump.
13. Remove 2 long mounting bolts and support bracket from old pump and fit to new.
14. Hold new pump in a soft jawed vice.
15. Fit pulley to new pump. Fit Torx screws securing pulley to pump, restrain pulley and tighten Torx screws to 10 Nm.
16. Fit hose to pump and secure with clip.
