Power steering pump - ’l’ series models with air conditioning (page 2 of 2)

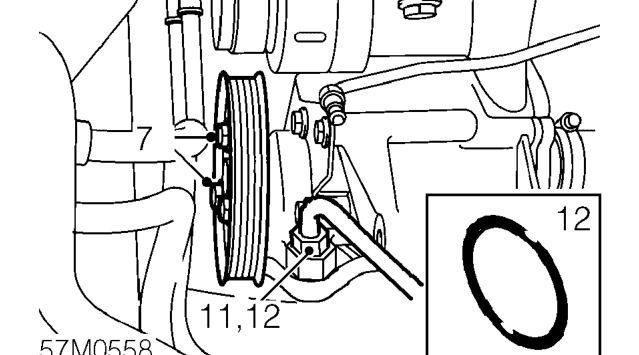

7. Loosen 3 Tx30 Torx screws securing pulley to pump.
8. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
9. Remove 3 Torx screws securing pulley to pump and remove pulley.
10. Position container to collect fluid loss from power steering system.
11. Loosen union securing high pressure to power steering pump.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

12. Disconnect high pressure hose from pump and discard ’O’ ring.

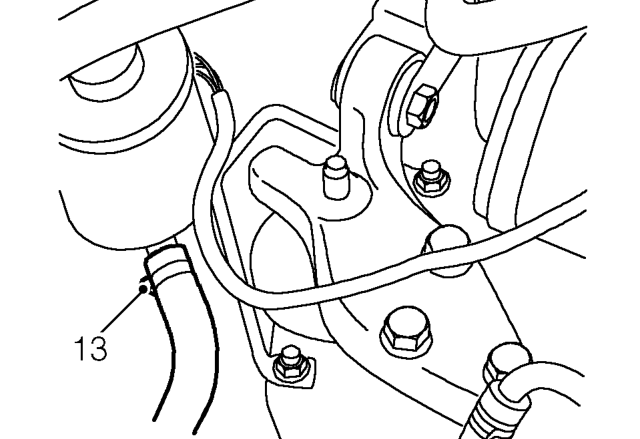

13. Release clip and disconnect power steering pump feed hose from fluid reservoir.

CAUTION: Plug the connections.

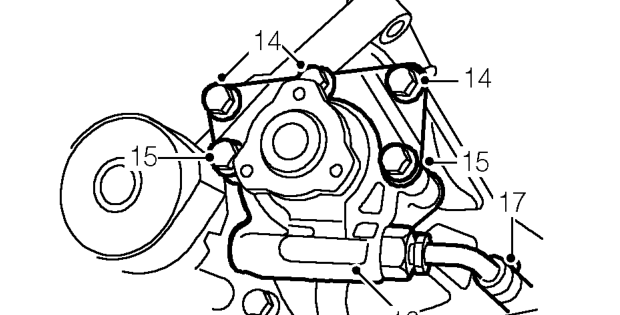

14. Remove 3 short bolts securing support bracket to power steering pump and coolant pump housing.
15. Remove 2 long bolts and support bracket securing power steering pump to coolant pump housing.
16. Remove power steering pump.

Do not carry out further dismantling if component is removed for access only.

17. Release clip and remove hose from power steering pump.
18. Fit hose to new pump and secure with clip.
