FRONT SPRING

Service repair no - 60.20.01

The procedure for renewing the front spring is identical to renewing the front damper. See this section.

FRONT DAMPER

Service repair no - 60.30.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front road wheel.

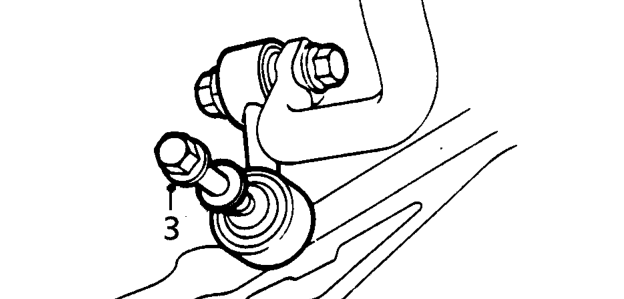

Front damper – Remove front road wheel.
  1. Remove bolt securing anti-roll bar link to suspension lower arm.

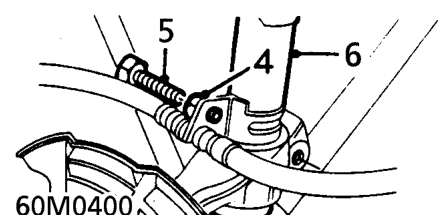

Front damper – Remove bolt securing anti-roll bar link to suspension lower arm.
  1. Remove bolt securing brake hose to front damper.
  2. Remove pinch bolt securing front hub to damper.
  3. Disconnect front hub from damper.
