Front hub bearing

Refit

1. Fit front hub assembly onto drive shaft.
2. Locate base of front damper in hub. Ensure locating lug on damper engages in slot on hub.
3. Clean lower ball joint and mating face of front hub.
4. Locate front hub on lower arm ball joint.
5. Fit castellated nut securing hub to lower arm and tighten to 55 Nm, then align next slot in nut with split pin hole.
6. Fit new split pin through castellated nut and secure.
7. Fit pinch bolt securing damper to front hub and tighten to 80 Nm.
8. Clean mating surfaces of brake disc and front hub.
9. Align reference marks and fit brake disc to front hub.
10. Fit screws securing brake disc to front hub and tighten to 10 Nm.
11. Fit brake caliper to front hub.
12. Fit bolts securing brake caliper to front hub and tighten to 108 Nm.
13. Align brake hose bracket to front damper, fit bolt and tighten to 25 Nm.
14. Connect track rod end to front hub, fit NEW nut and tighten to 45 Nm.
15. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
16. Remove stand(s) and lower vehicle.
17. Fit new nut securing front hub to drive shaft and tighten to 180 Nm. Stake nut to drive shaft.

FRONT HUB BEARING

Service repair no - 60.25.14

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove front road wheel.
3. Remove front hub. See this section.

4. Position hub beneath press.

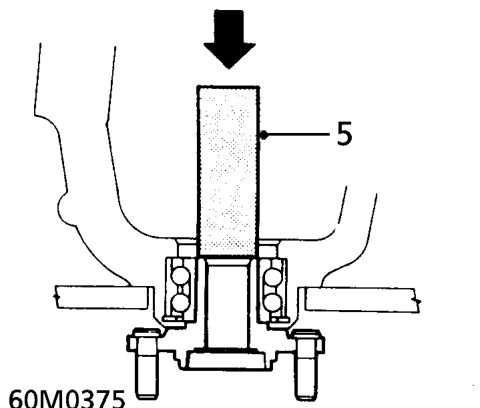

5. Using a suitable size drift, press out drive flange from front hub.

NOTE: Part of the bearing inner track will remain on the drive flange.

6. Remove front hub from press.
