Rear beam - with manual steering rack

Refit

1. With assistance, offer beam to body and engage lower arms.
2. Fit bolts securing beam to body. DO NOT tighten bolts.
3. Position PAS pipe to beam and secure with bolt.
4. Tighten bolts securing beam to body to 100 Nm.
5. ’K’ Series only: Fit evaporative emission canister vent hose to beam.
6. Position clutch cable to beam and secure with bolt.
7. Position PAS pipe to beam and secure with bolt.
8. Fit bolts securing anti-roll bar to anti-roll bar links and tighten to 45 Nm.
9. Fit bolts securing lower arms to beam and tighten to 45 Nm.
10. Fit steering rack. See STEERING, Repairs.
11. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
12. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
13. Remove stand(s) and lower vehicle.

REAR BEAM - WITH MANUAL STEERING RACK

Service repair no - 60.35.23

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).
3. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
4. Remove steering rack. See STEERING, Repairs.

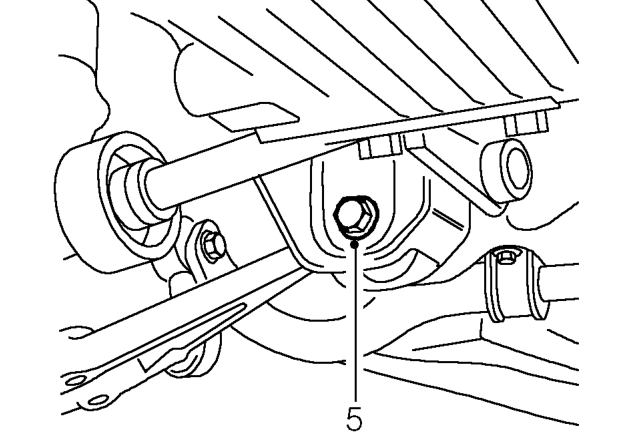

5. Remove 2 bolts securing both lower arms to rear beam.
