Front beam (page 3 of 3)

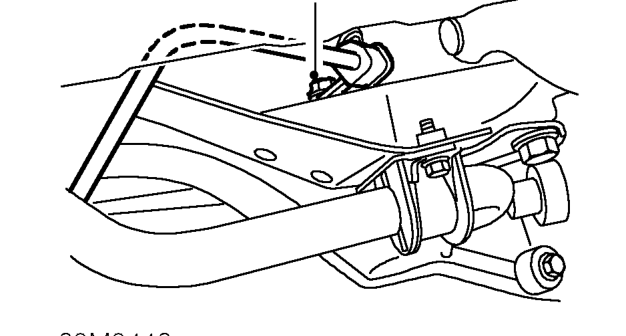

11. Lower beam to gain access to bolt securing PAS pipe to beam.
12. Remove bolt securing pipe to beam.

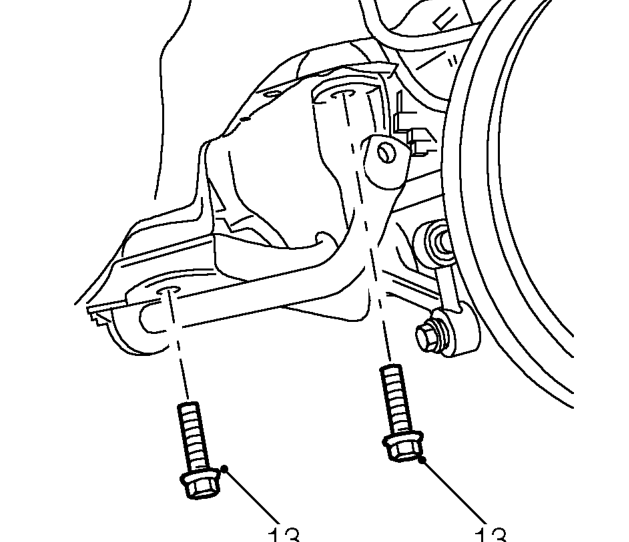

13. With assistance, remove 4 bolts securing beam to body. Release beam from lower arms and lower to floor.

Do not carry out further dismantling if component is removed for access only.

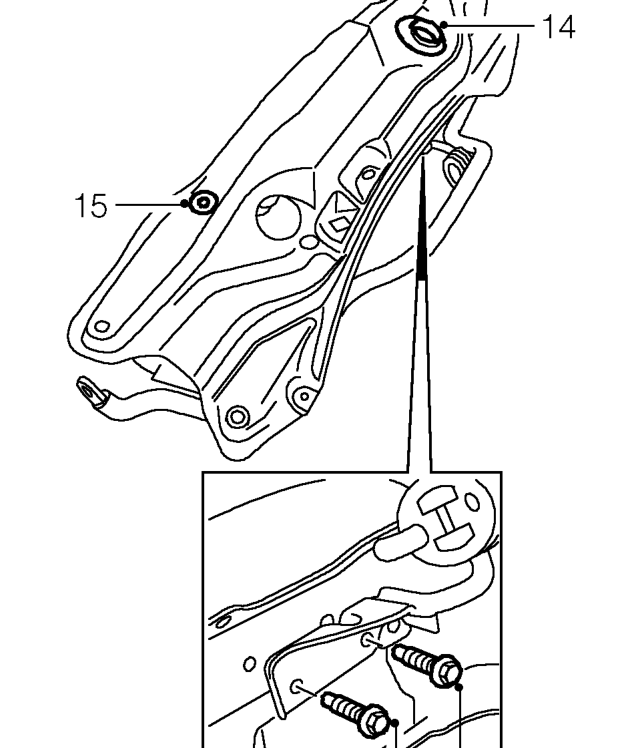

14. Remove steering column mounting rubber.
15. ’K’ Series only: Remove evaporative emission canister vent hose plastic collar from beam.
16. Remove 2 bolts securing exhaust front pipe mounting bracket to beam.
17. Remove anti-roll bar bushes. See this section.
18. Remove anti-roll bar and position to new beam.
19. Fit anti-roll bar bushes. See this section.
20. Position exhaust front pipe mounting bracket to beam and secure with bolts.
21. Fit steering column mounting rubber to beam.
22. ’K’ Series only: Fit evaporative emission canister vent hose plastic collar to beam.
