FRONT BEAM

Service repair no - 60.35.21

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. ’L’ Series: Remove undertray. See BODY, Exterior fittings. ’K16 with VVC’: Remove splash shield. See BODY, Exterior fittings.

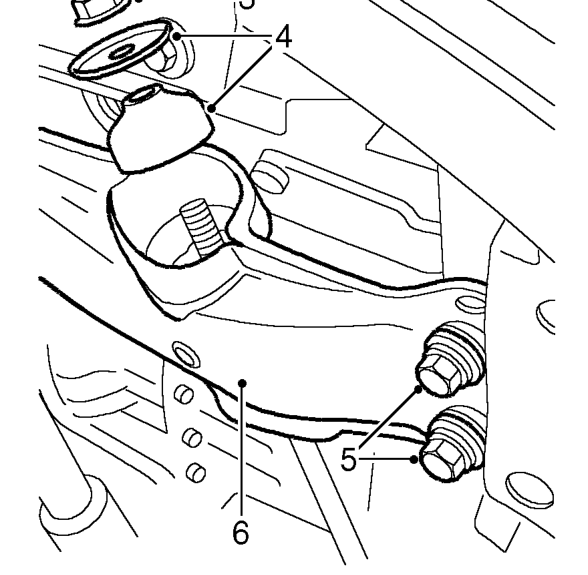

Front beam – ’L’ Series: Remove undertray. See BODY, Exterior fittings. ’K16 with VVC’: Remove splash s
  1. Remove nut securing each tie rod to front beam.
  2. Remove 2 flanged washers and 2 bushes.
  3. Remove 4 bolts securing front beam to body.
  4. Remove front beam.

Refit

  1. Clean mating faces of front beam and body.
  2. Position front beam to body.
  3. Fit 4 bolts securing front beam to body and tighten to 100 Nm.
  4. Fit bushes and flanged washers to tie rods, fit nuts and tighten to 45 Nm.
  5. ’L’ Series: Fit undertray. See BODY, Exterior fittings. ’K16 with VVC’: Fit splash shield. See BODY, Exterior fittings.
  6. Remove stand(s) and lower vehicle.

REAR BEAM - WITH POWER STEERING RACK

Service repair no - 60.35.23

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  3. Remove steering rack. See STEERING, Repairs.

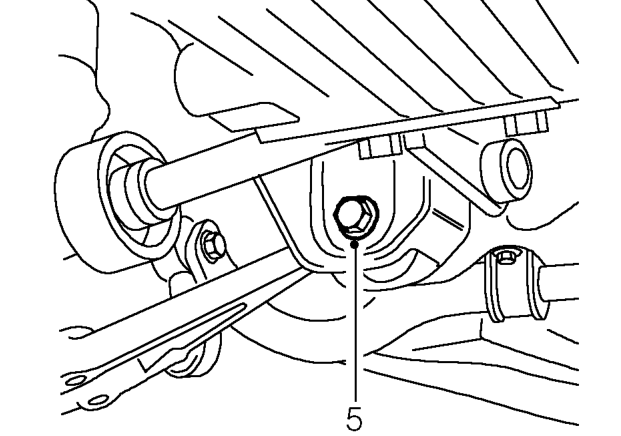

Rear beam - with power steering rack – Remove steering rack. See STEERING, Repairs.
  1. Remove 2 bolts securing both lower arms to rear beam.
