Anti-roll bar link

ANTI-ROLL BAR LINK

Service repair no - 60.10.02

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove front road wheel.

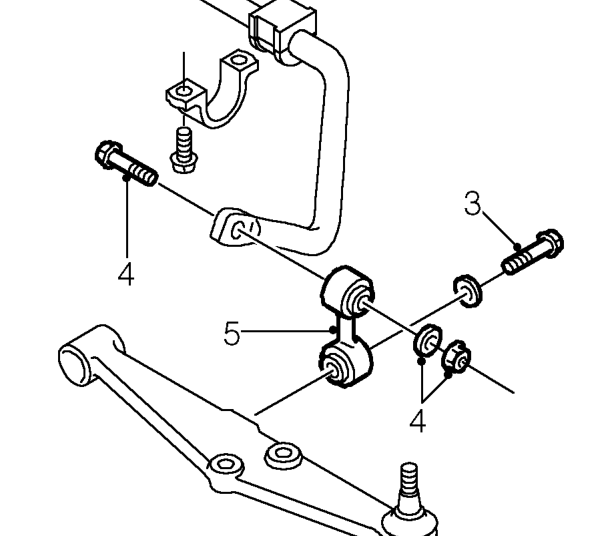

3. Remove bolt and washer securing anti-roll bar link to lower arm.
4. Remove nut, washer and bolt securing link to anti-roll bar.
5. Remove anti-roll bar link.

Refit

1. Position link to anti-roll bar and lower arm.
2. Fit bolt, washer and nut securing link to anti-roll bar, but do not tighten.
3. Fit bolt and washer securing link to lower arm and tighten to 60 Nm.
4. Tighten nut and bolt securing link to anti-roll bar to 45 Nm.
5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
6. Remove stand(s) and lower vehicle.

ANTI-ROLL BAR BUSHES

Service repair no - 60.10.05

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

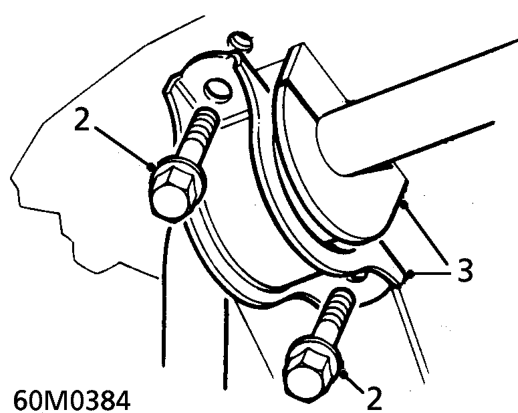

2. Remove 2 bolts securing anti-roll bar bush clamp to rear beam.
3. Remove clamp and bush.
4. Remove bush from clamp.

Refit

1. Clean bush mating surfaces.
2. Smear bore of bush with rubber grease.
3. Fit bush to anti-roll bar, ensuring split faces rearwards.
4. Fit clamp to bush.
5. Fit and tighten bolts to 22 Nm.
6. Repeat remove and refit operations on second bush.
7. Remove stand(s) and lower vehicle.
