Front suspensionFront beam · page 2 of 3

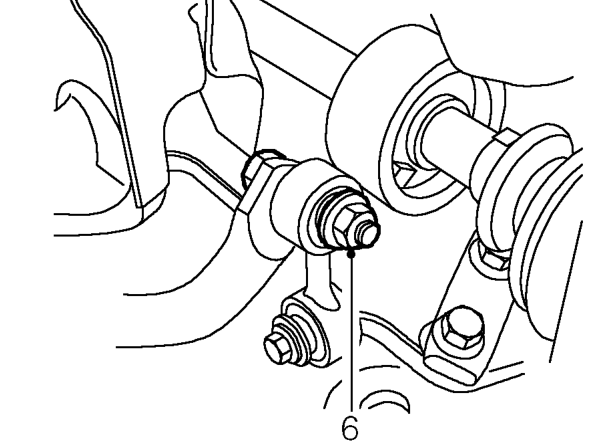

Diagram
  1. Remove 2 bolts securing both anti-roll bar links to anti-roll bar.

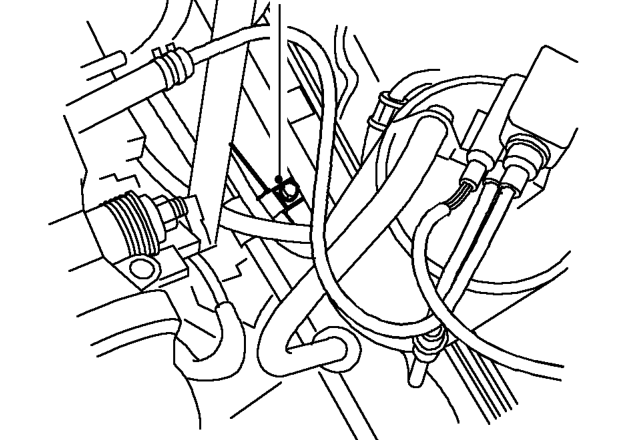

Remove 2 bolts securing both anti-roll bar links to anti-roll bar.
  1. Remove bolt securing power steering pipe to rear beam.
  2. Remove bolt securing clutch cable bracket to rear beam.

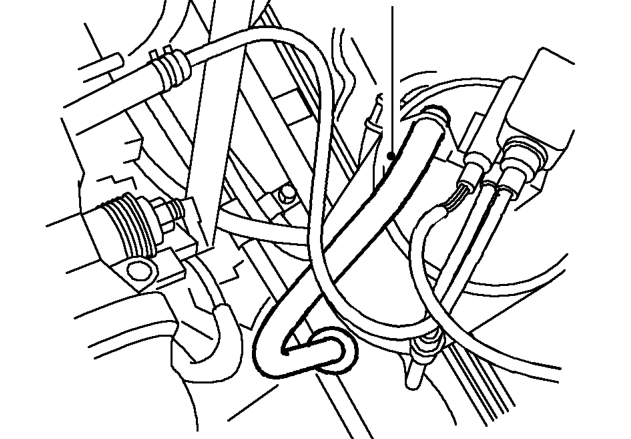

Remove bolt securing clutch cable bracket to rear beam.
  1. ’K’ Series only: Release evaporative emission canister vent hose from rear beam.

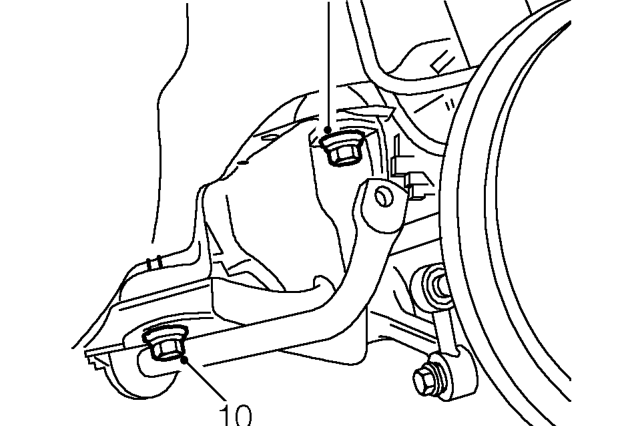

’K’ Series only: Release evaporative emission canister vent hose from rear beam.
  1. Loosen 4 bolts securing rear beam to body.
