Rear beam - with manual steering rack (page 3 of 3)

Do not carry out further dismantling if component is removed for access only.

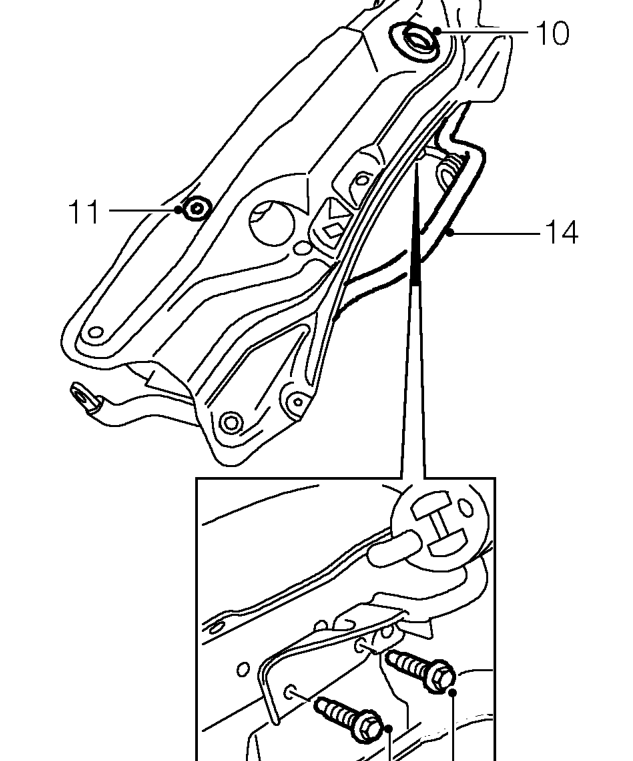

10. Remove steering column mounting rubber.
11. ’K’ Series only: Remove evaporative emission canister vent hose plastic collar from beam.
12. Remove 2 bolts securing exhaust front pipe mounting bracket to beam.
13. Remove anti-roll bar bushes. See this section.
14. Remove anti-roll bar and position to new beam.
15. Fit anti-roll bar bushes. See this section.
16. Position exhaust front pipe mounting bracket to beam and secure with bolts.
17. Fit steering column mounting rubber to beam.
18. ’K’ Series only: Fit evaporative emission canister vent hose collar to beam.

Refit

1. With assistance, offer beam to body and engage lower arms.
2. Fit bolts securing beam to body and tighten to 100 Nm.
3. ’K’ Series only: Fit evaporative emission canister vent hose to beam.
4. Position clutch cable to beam and secure with bolt.
5. Fit bolts securing anti-roll bar to anti-roll bar links and tighten to 45 Nm.
6. Fit bolts securing lower arms to beam and tighten to 60 Nm.
7. Fit steering rack. See STEERING, Repairs.
8. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
10. Remove stand(s) and lower vehicle.
