Rear beam - with manual steering rack (page 2 of 3)
- Make
- Rover
- Model
- 200 Workshop Manual
- Year
- 1995–1999
- Section
- Repairs
Front suspensionRear beam - with manual steering rack · page 2 of 3

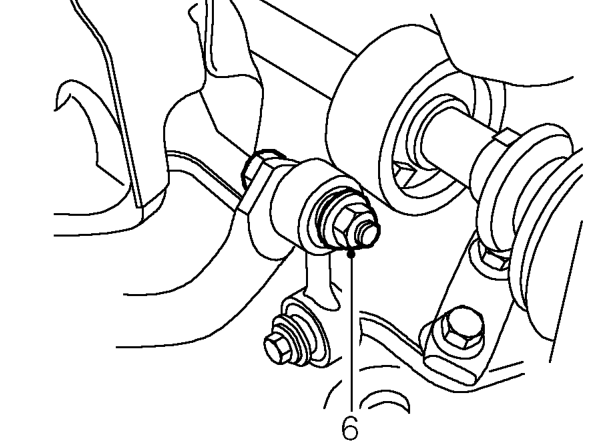

- Remove 2 bolts securing both anti-roll bar links to anti-roll bar.

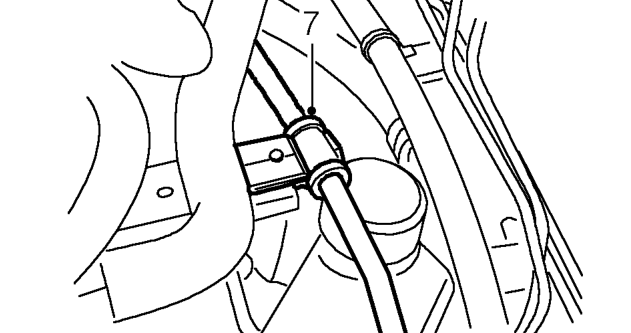

- Remove bolt securing clutch cable bracket to rear beam.
- ’K’ Series only: Release evaporative emission canister vent hose from rear beam.
- With assistance, remove 4 bolts securing beam to body. Release beam from lower arms and lower to floor.
