Rover 200 Workshop Manual (1995-1999)23 · Front suspension
23 · Steering & suspension

Front hub bearing (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Front suspensionFront hub bearing · page 2 of 2
Diagram

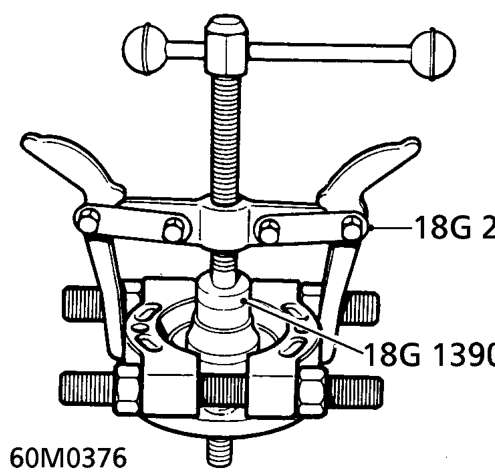

  1. Hold drive flange securely in vice.
  2. Clamp 2 halves of bearing separator tool around the bearing inner track on drive flange, ensure inner lip of tool engages behind inner track.
  3. Using tool 18G 2 and thrust pad 18G 1390 withdraw bearing inner track from drive flange.
Using tool 18G 2 and thrust pad 18G 1390 withdraw bearing inner track from drive flange.

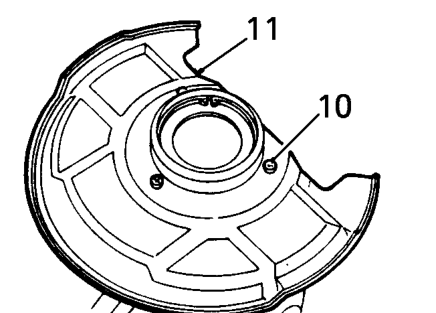

  1. Remove 3 screws securing brake disc shield to front hub.
  2. Remove brake disc shield.
Remove brake disc shield.

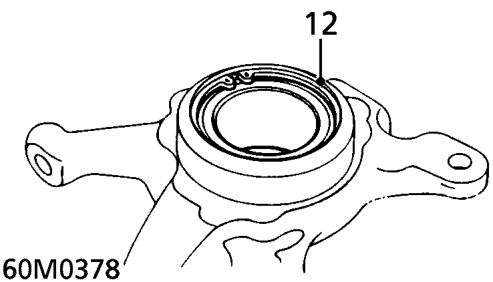

  1. Remove circlip securing bearing in front hub.
Remove circlip securing bearing in front hub.

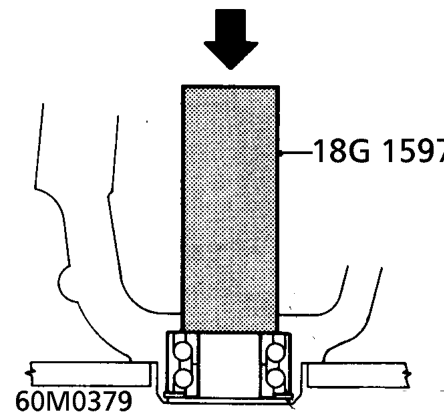

  1. Position front hub beneath press.
  2. Position tool 18G 1597 to bearing and press out bearing from front hub. Discard bearing.

CAUTION: Never re-use an existing bearing.
