ElectricalPassive coil

Refit

  1. Rotate adjusting screw of NEW motor to fully extend pin.
  2. Fit motor to lamp engaging ball end of pin into location at rear of lens.
  3. Fit bulb access cover to lamp.
  4. Fit headlamp See this section.
  5. Adjust headlamp alignment. See Adjustments.

PASSIVE COIL

Service repair no - 86.77.35

Remove

  1. Remove steering column nacelle. See STEERING, Repairs.

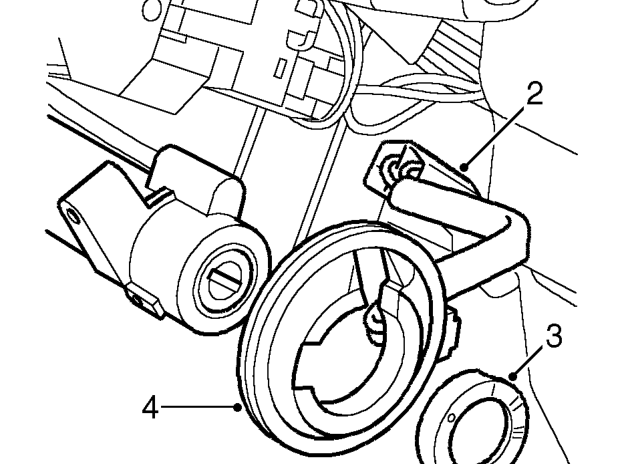

Passive coil – Remove steering column nacelle. See STEERING, Repairs.
  1. Disconnect passive coil multiplug.
  2. Carefully remove bezel from column switch.
  3. Remove passive coil.

Refit

  1. Fit passive coil.
  2. Fit switch bezel ensuring cut-out in bezel is aligned with lug on switch.
  3. Connect multiplug.
  4. Fit steering column nacelle. See STEERING, Repairs.
