Rear door lock motor

Refit

1. Fit inside door handle and sill button control rod to latch.
2. Position latch to door and tighten Torx screws to 6 Nm.
3. Align rear channel and tighten bolt to 8 Nm.
4. Connect lock multiplug.
5. Fit control rod to inside door handle.
6. Fit inside handle to door and tighten screws.
7. Fit private lock control rod to latch.
8. Fit outside handle control rod to latch and secure with clip.
9. Fit front door outside handle. See BODY, Exterior fittings.

REAR DOOR LOCK MOTOR

Service repair no - 86.26.09

Remove

1. Remove rear door outside handle. See BODY, Exterior fittings.

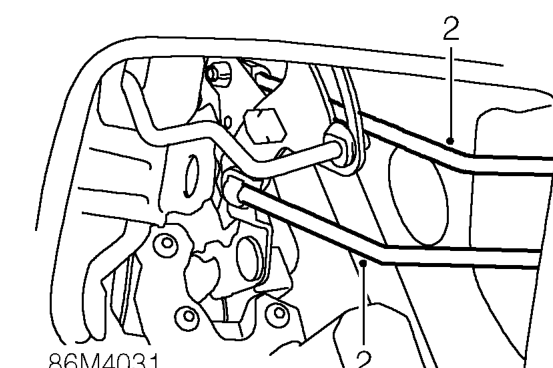

2. Release interior handle and sill locking button control rods from lock motor.

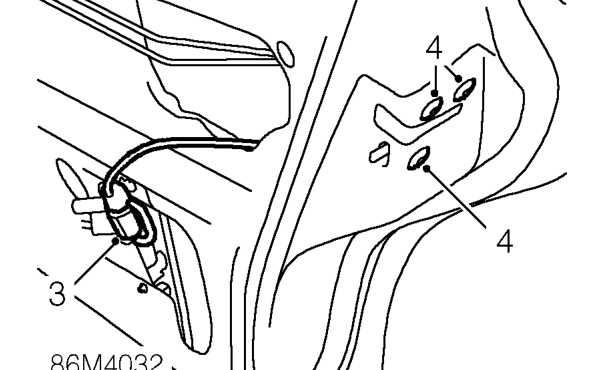

3. Release lock motor multiplug from door and disconnect from motor.
4. Remove 3 Tx25 screws securing lock motor to door.
5. Remove lock motor from door.

Refit

1. Position lock motor in door. Fit Torx screws and tighten to 7 Nm.
2. Connect multiplug to door lock and secure to door.
3. Connect interior handle and sill locking button control rods to lock motor.
4. Fit rear door outside handle. See BODY, Exterior fittings.
