Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Instrument pack illumination bulb

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Instrument pack illumination bulb
ElectricalInstrument pack illumination bulb

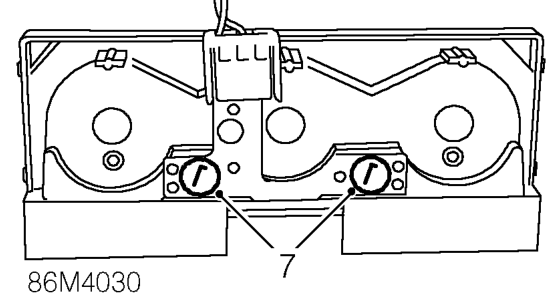

Diagram
  1. Remove bulbs from rear of faceplate.

Refit

  1. Fit bulbs to rear of heater control faceplate.
  2. Position faceplate to heater control and secure with clips.
  3. Fit and tighten screws securing faceplate to heater controls.
  4. Fit and tighten screws securing heater controls to fascia.
  5. Fit knobs to heater controls.
  6. Fit front console. See BODY, Interior trim components.

INSTRUMENT PACK ILLUMINATION BULB

Service repair no - 86.45.48

Remove

  1. Remove instrument pack. See INSTRUMENTS, Repairs.

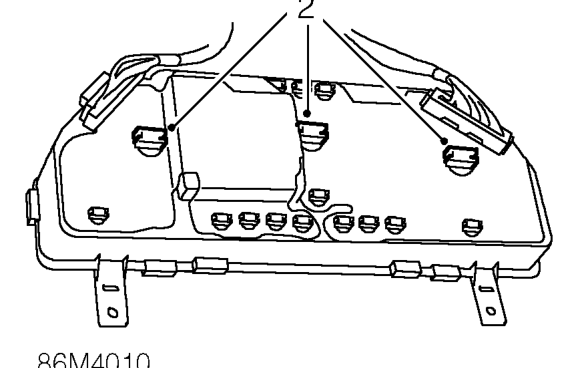

Instrument pack illumination bulb – Remove instrument pack. See INSTRUMENTS, Repairs.
  1. Remove bulb from rear of instrument pack.

Refit

  1. Fit bulb to rear of instrument pack.
  2. Fit instrument pack. See INSTRUMENTS, Repairs.
