Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Remote ICE controls

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Remote ICE controls
ElectricalRemote ICE controls

REMOTE ICE CONTROLS

Service repair no - 86.50.13

Remove

  1. Disconnect battery earth lead.
  2. Remove both horn switches. See this section.

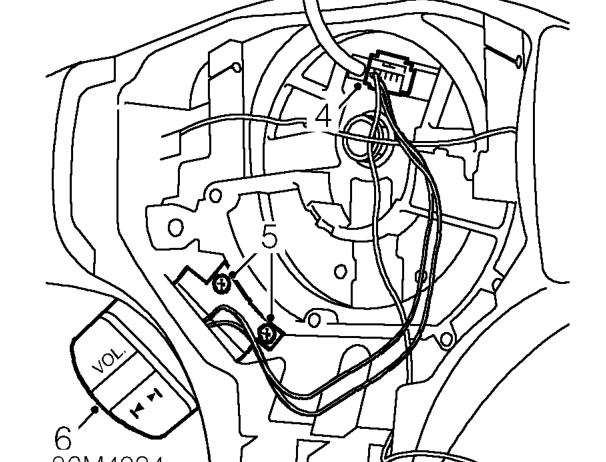

Remote ice controls – Remove both horn switches. See this section.
  1. Release multiplug from rotary coupler.
  2. Remove 2 screws securing remote controls to steering wheel.
  3. Release remote controls from steering wheel.
  4. Remove controls and harness from steering wheel.

Refit

  1. Fit harness to steering wheel and secure remote controls to steering wheel.
  2. Fit and tighten screws securing controls to steering wheel.
  3. Connect multiplug to rotary coupler.
  4. Fit both horn switches. See this section.
  5. Connect battery earth lead.

FRONT SPEAKER

Service repair no - 86.50.15

Remove

  1. Remove front door trim casing. See BODY, Interior trim components.

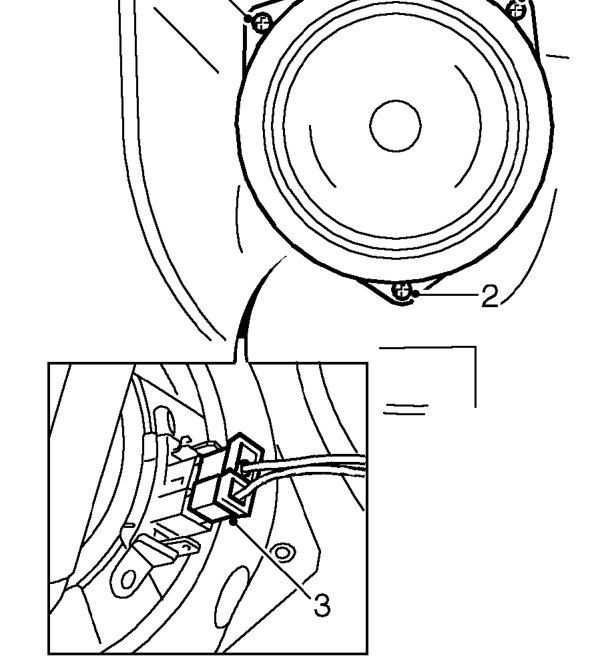

Front speaker – Remove front door trim casing. See BODY, Interior trim components.
  1. Remove 3 screws securing speaker to door.
  2. Release speaker from door and disconnect multiplug.

Refit

  1. Connect multiplug to speaker and position to door.
  2. Fit screws securing speaker to door.
  3. Fit front door trim casing. See BODY, Interior trim components.
