DIM-DIP RELAY

Service repair no - 86.55.91

Remove

Dim-dip relay – Service repair no - 86.55.91
  1. Release 2 turnbuckles securing closing panel to fascia and remove panel.

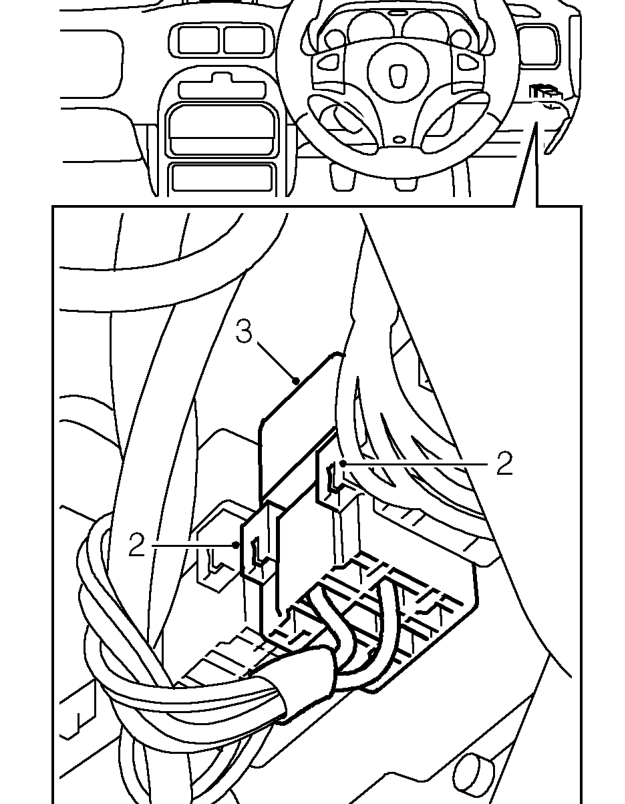

Dim-dip relay – Release 2 turnbuckles securing closing panel to fascia and remove panel.
  1. Release 2 clips securing dim-dip relay to harness.
  2. Remove relay.

Refit

  1. Fit relay to harness and engage to clips.
  2. Fit closing panel to fascia and secure with turnbuckles.
