ANTI-THEFT ALARM ECU

Service repair no - 86.55.85

Remove

  1. Disconnect battery earth lead.
Anti-theft alarm ecu – Disconnect battery earth lead.

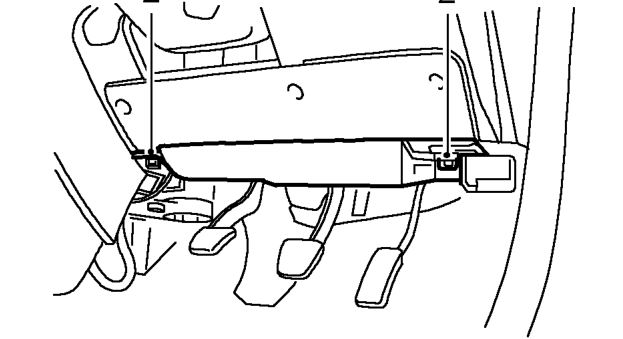

  1. Release 2 turnbuckles and remove closing panel.
Anti-theft alarm ecu – Release 2 turnbuckles and remove closing panel.

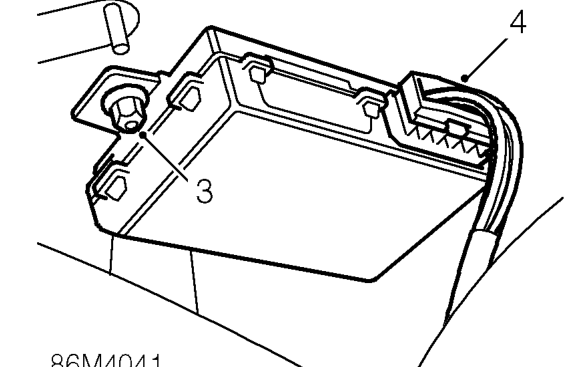

  1. Remove 2 nuts securing anti theft alarm ECU to body and release ECU.
  2. Disconnect multiplug from anti-theft alarm ECU.

Refit

  1. Connect multiplug to anti-theft alarm ECU.
  2. Position anti-theft alarm ECU to body and secure with nuts.
  3. Fit closing panel and secure with turnbuckles.
  4. Connect battery earth lead.

NOTE: If a new anti-theft alarm ECU has been fitted, the ECM will need to be reprogrammed with TestBook.
