Alternator - ’l’ series without air conditioning

Refit

1. Position alternator in vehicle.
2. Connect 2 cables to alternator and secure with nuts.
3. Position alternator top mounting bracket
4. Fit bolt securing alternator top mounting bracket to engine and tighten to 25 Nm.
5. Tighten nut securing alternator top mounting bracket to engine to 25 Nm .
6. Manoeuvre alternator onto mounting brackets.
7. Fit 2 through bolts securing alternator to mounting brackets, fit 2 nuts and tighten to 45 Nm.
8. Connect drive belt to alternator pulley Ensure grooves on drive belt and pulleys are correctly located.
9. Adjust drive belt tension. See Adjustments.
10. Remove stand(s) and lower vehicle.
11. Connect battery earth lead.

ALTERNATOR - ’L’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.02

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove auxiliary drive belt. See this section.
4. Remove engine acoustic cover. See BODY, Exterior fittings.
5. Fit wooden block to jack and position jack to support engine.

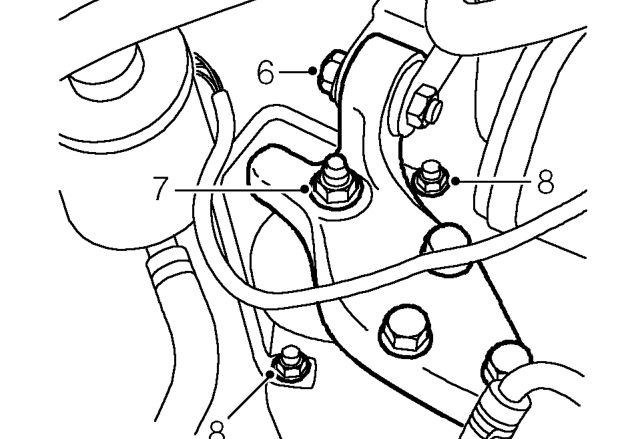

6. Remove through bolt securing RH steady bar to engine mounting bracket.
7. Remove nut securing mounting bracket to engine mounting.
8. Loosen 2 nuts securing restraint bar to body.
