ElectricalInterior light

INTERIOR LIGHT

Service repair no - 86.45.02

Remove

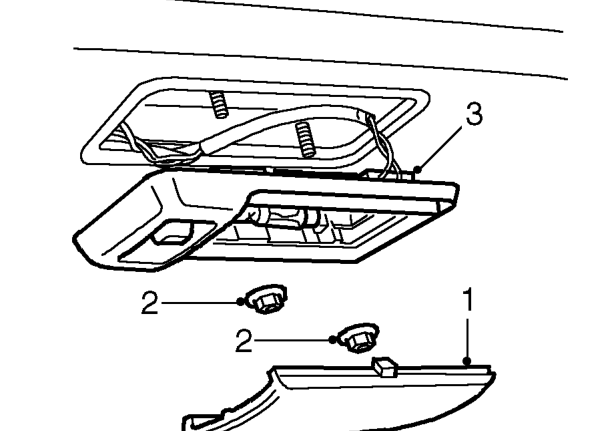

Interior light – Service repair no - 86.45.02
  1. Carefully prise out the lens from the light housing.
  2. Remove 2 nuts securing interior light to roof.
  3. Disconnect multiplug and remove interior light.

Refit

  1. Position interior light to roof and connect multiplug.
  2. Fit and tighten nuts securing interior light to roof.
  3. Fit lens to interior light.

GLOVEBOX LAMP

Service repair no - 86.45.08

Remove

  1. Open glovebox.

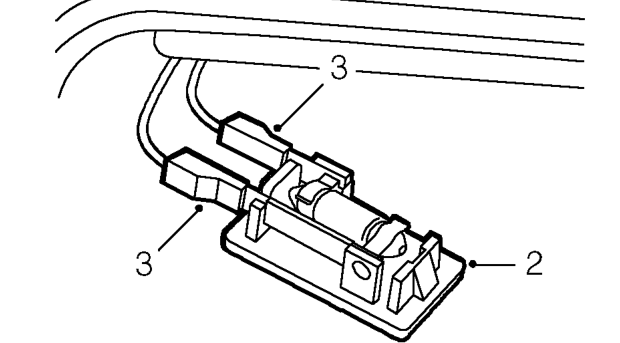

Glovebox lamp – Open glovebox.
  1. Release lamp from fascia.
  2. Disconnect 2 Lucar connectors and remove lamp.

Refit

  1. Position lamp to fascia and connect Lucars.
  2. Fit lamp to fascia.
  3. Close glovebox.
