AUXILIARY DRIVE BELT - ’K’ SERIES WITH AIR CONDITIONING

Service repair no - 86.10.03.20

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove power steering pump drive belt. See STEERING, Repairs.

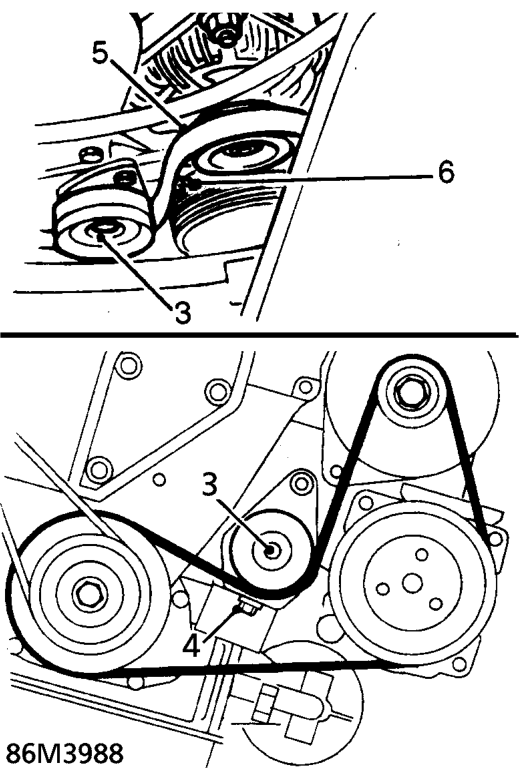

Auxiliary drive belt - ’k’ series with air conditioning – Remove power steering pump drive belt. See STEERING, Repairs.
  1. Loosen drive belt tensioner pulley securing bolt.
  2. Release drive belt tension by turning the tension adjusting bolt anti-clockwise.
  3. Release drive belt from alternator and compressor pulleys.
  4. Remove and discard drive belt.

Refit

  1. Clean pulley ’V’s.
  2. Fit new drive belt to crankshaft pulley and connect to alternator and compressor pulleys. Ensure grooves on drive belt and pulleys are correctly located.
  3. Adjust drive belt tension. See Adjustments.
  4. Fit and adjust power steering pump drive belt. See STEERING, Repairs.
  5. Remove stand(s) and lower vehicle.
