Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Anti-theft alarm led

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Anti-theft alarm led
ElectricalAnti-theft alarm led
Diagram

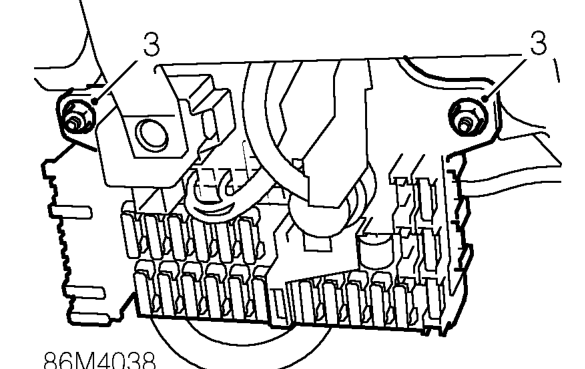

  1. Remove 2 nuts securing passenger compartment fuse box to brackets and release fuse box.
Remove 2 nuts securing passenger compartment fuse box to brackets and release fuse box.

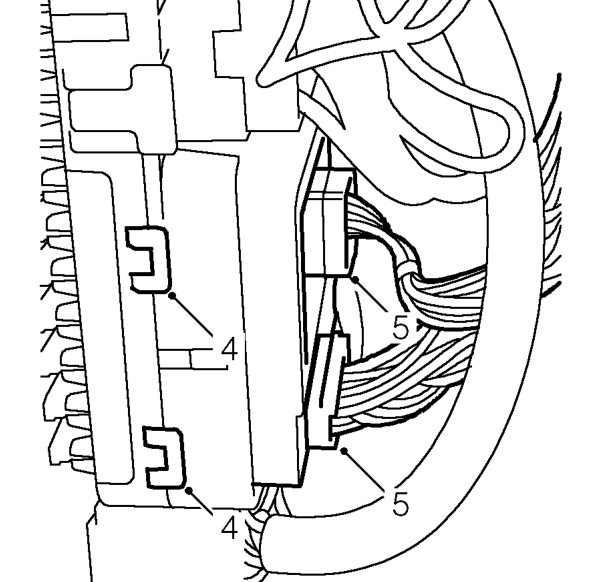

  1. Release 2 clips securing ICU to rear of passenger compartment fuse box and release ICU.
  2. Disconnect 2 multiplugs from ICU.

Refit

  1. Connect multiplugs to ICU.
  2. Position ICU and engage to fuse box clips.
  3. Position fuse box and tighten nuts to 10 Nm.
  4. Fit fuse box cover and secure with turnbuckles.
  5. Fit closing panel and secure with turnbuckles.

ANTI-THEFT ALARM LED

Service repair no - 86.55.97

Remove

  1. Remove instrument pack. See INSTRUMENTS, Repairs.

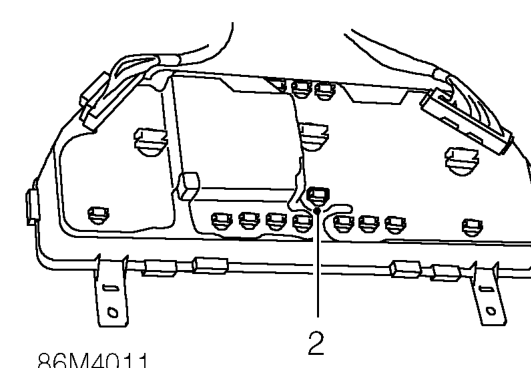

Anti-theft alarm led – Remove instrument pack. See INSTRUMENTS, Repairs.
  1. Remove anti-theft alarm LED from rear of instrument pack.

Refit

  1. Fit LED to rear of instrument pack.
  2. Fit instrument pack. See INSTRUMENTS, Repairs.
