ElectricalHeadlamp assembly

HEADLAMP ASSEMBLY

Service repair no - 86.40.49

Remove

  1. Remove front bumper. See BODY, Exterior fittings.

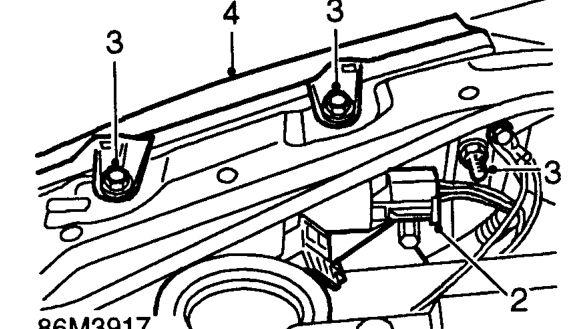

Headlamp assembly – Remove front bumper. See BODY, Exterior fittings.
  1. Disconnect multiplug from headlamp. 97.5 MY on: Disconnect multiplug from headlamp levelling motor.
  2. Remove 2 bolts and nut securing headlamp to body.
  3. Release headlamp from clip and remove.

Refit

  1. Position headlamp to body and secure to clip.
  2. Fit bolts and nut securing headlamp to body and tighten to 5 Nm.
  3. Connect multiplug to headlamp.
  4. Fit front bumper. See BODY, Exterior fittings.

SIDE REPEATER

Service repair no - 86.40.53

Remove

  1. Pull wheel arch liner aside to gain access to rear of side repeater.

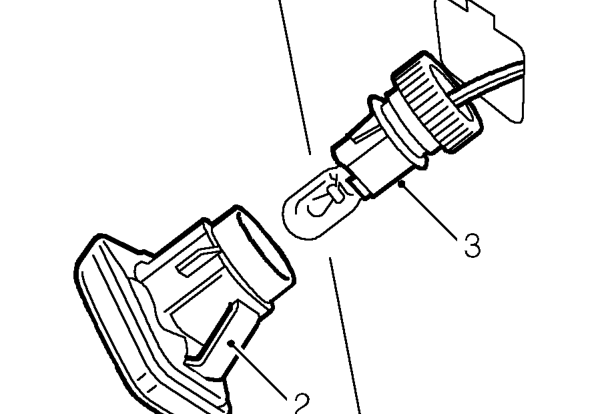

Side repeater – Pull wheel arch liner aside to gain access to rear of side repeater.
  1. Squeeze lugs on repeater to release from wing.
  2. Release bulb holder from repeater.

Refit

  1. Connect bulb holder to repeater.
  2. Fit repeater to wing.
  3. Replace wheel arch liner.
