Tweeter - front door

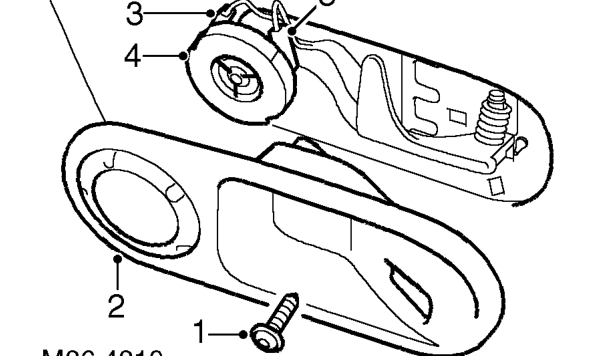

TWEETER - FRONT DOOR

Service repair no - 86.50.34

Remove

1. Remove screw securing door handle escutcheon to door.
2. Move escutcheon rearwards and release escutcheon from door.
3. Disconnect 2 Lucars from tweeter.
4. Rotate tweeter until retaining lugs are released from surround, remove tweeter.

Refit

1. Position tweeter to surround, rotate tweeter until retaining lugs are engaged.
2. Connect Lucars to tweeter.
3. Fit door handle escutcheon to door, fit and tighten screw.

CD PLAYER

Service repair no - 86.50.81

Remove

1. Disconnect battery earth lead.

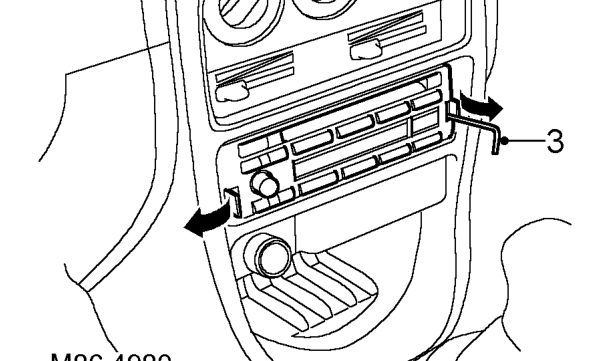

2. Release access tab from each side of unit.
3. Using a 2.5 mm Allen key, slacken 2 captive screws securing unit.

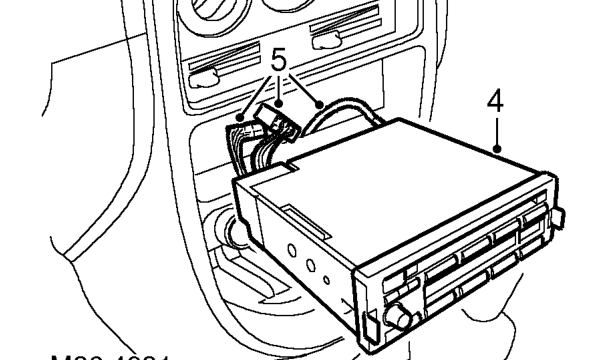

4. Withdraw unit sufficiently to gain access to multiplugs and aerial lead.

CAUTION: Take care not to damage face of unit.

5. Noting their fitted positions, disconnect 2 multiplugs and aerial lead plug; remove unit.
