Coaxial cable (page 3 of 3)

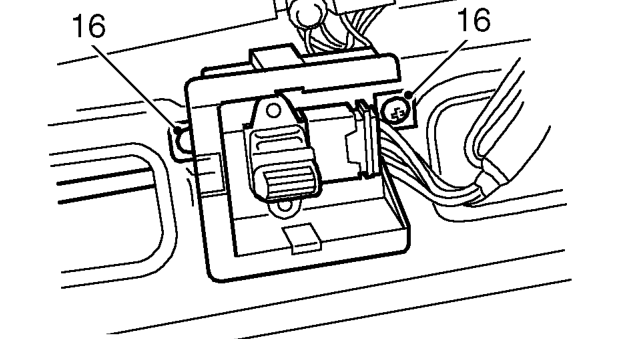

16. Models with sun roof: Remove 2 screws securing sun roof switch mounting to roof and remove mounting.

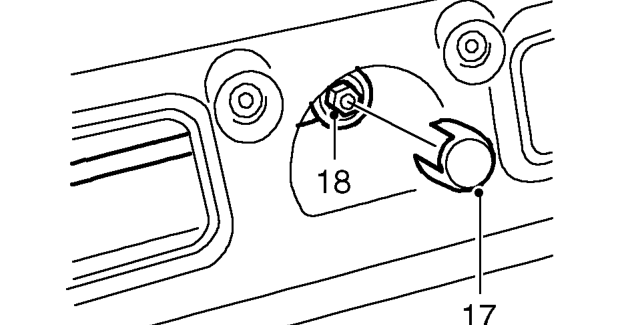

17. Remove cover from end of coaxial cable.
18. Remove nut securing coaxial cable to aerial base.
19. Release coaxial cable from aerial base.
20. Remove coaxial cable.

Refit

1. Feed coaxial cable through roof aperture, down LH ’A’ post and behind fascia.
2. Fit and tighten nut securing coaxial cable to aerial base.
3. Fit cover to coaxial cable.
4. Secure coaxial cable to clip on roof.
5. Models with sun roof: Position sun roof switch mounting and secure with screws.
6. Position front of headlining to roof and secure with trim studs.
7. Models with sun roof: Position sun roof switch finisher and secure to headlining.
8. Fit sun visor clips to headlining and secure with screws.
9. Fit sun visors to headlining and secure with screws.
10. Secure coaxial cable to clips on ’A’ post.
11. Fit ’A’ post upper trim casings. See BODY, Interior trim components.
12. Fit seals to front door apertures.
13. Secure coaxial cable to clips on heater blower assembly.
14. Connect coaxial cable to radio.
15. Slide radio into fascia until retaining clips engage.
16. Fit glove box. See BODY, Interior trim components.
