Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Coaxial cable (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
ElectricalCoaxial cable · page 2 of 3
Diagram

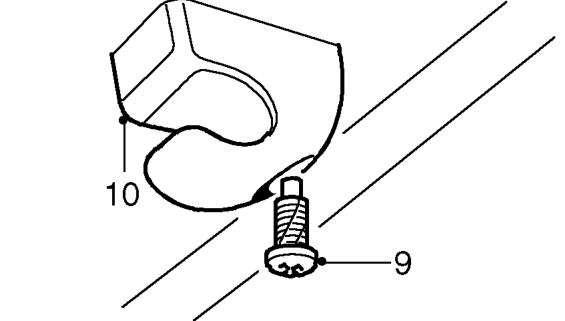

  1. Remove 2 screws securing both sun visor clips.
  2. Remove clips.
Remove clips.

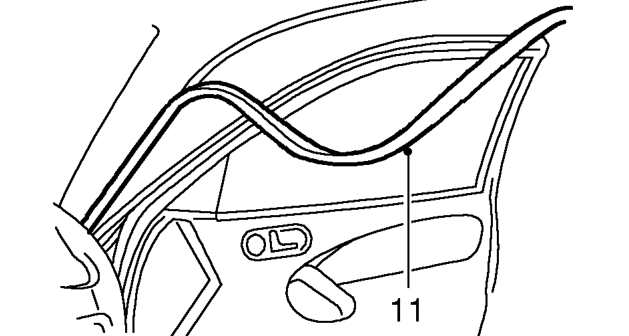

  1. Remove seals from top of both front door apertures.

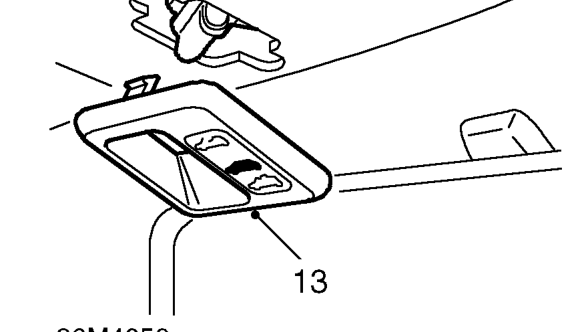

  2. Remove 2 trim studs securing headlining to roof.
Remove 2 trim studs securing headlining to roof.
  1. Models with sun roof: Release sun roof switch finisher from headlining and remove.

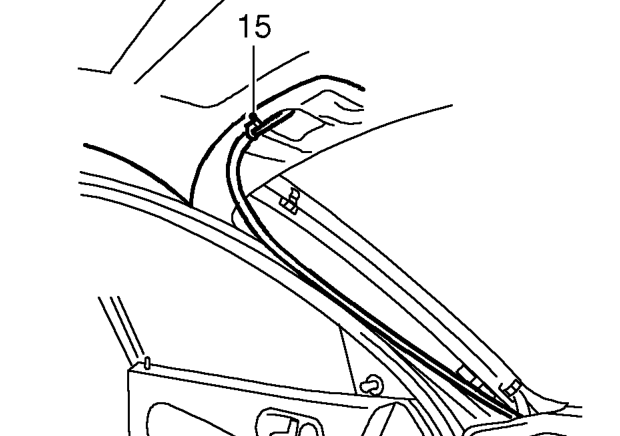

  2. Carefully lower front edge of headlining to gain access to aerial.
Carefully lower front edge of headlining to gain access to aerial.
  1. Release coaxial cable from clip on roof.
