Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Flasher unit

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Flasher unit
ElectricalFlasher unit

Refit

  1. Position unit, connect 2 multiplugs and aerial lead plug.
  2. Fit unit, tighten 2 captive screws.
  3. Secure access tab to each side of unit.
  4. Connect battery earth lead.
  5. Enter security code and check unit for correct operation.

FLASHER UNIT

Service repair no - 86.55.68

Remove

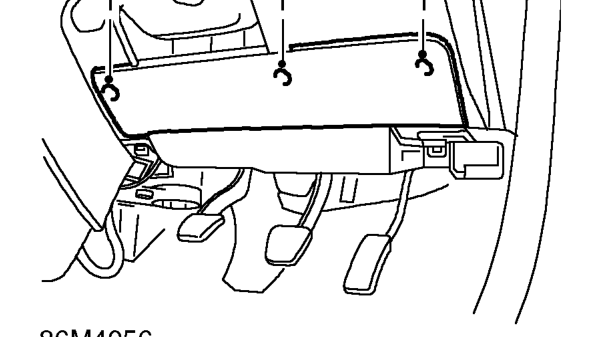

Flasher unit – Service repair no - 86.55.68
  1. Release 3 turnbuckles and remove passenger compartment fuse box cover.

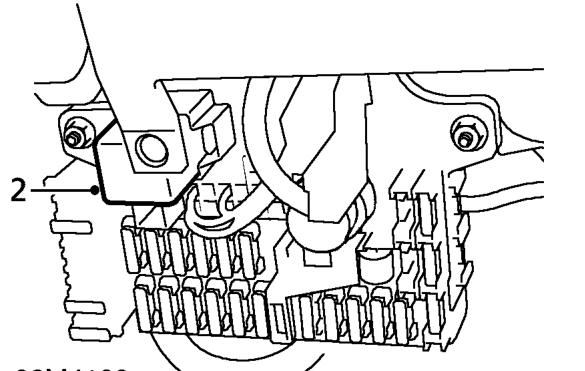

Flasher unit – Release 3 turnbuckles and remove passenger compartment fuse box cover.
  1. Remove flasher unit from passenger compartment fuse box.

Refit

  1. Fit flasher unit to fuse box.
  2. Fit fuse box cover and secure with turnbuckles.
