ElectricalSwitch - headlamp levelling

SWITCH - HEADLAMP LEVELLING

Service repair no - 86.65.16

Remove

Switch - headlamp levelling – Service repair no - 86.65.16

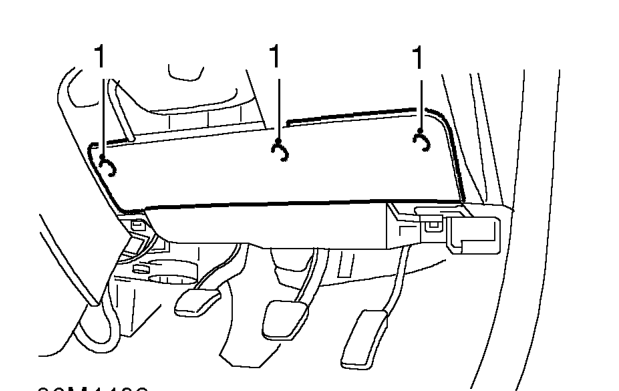

  1. Release 3 turnbuckles and remove passenger compartment fuse box cover.
Switch - headlamp levelling – Release 3 turnbuckles and remove passenger compartment fuse box cover.

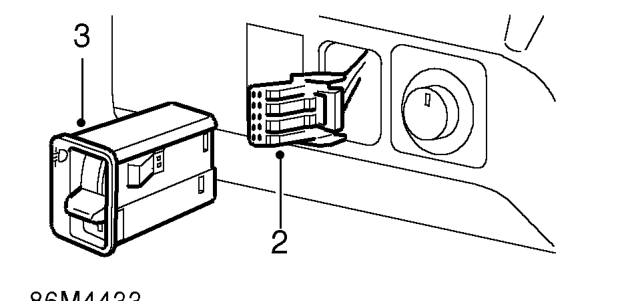

  1. Disconnect multiplug from switch.
  2. Release and remove switch.

Refit

  1. Fit switch and secure multiplug.
  2. Position fuse box cover and secure turnbuckles.

MOTOR - HEADLAMP LEVELLING

Service repair no - 86.41.44

Remove

  1. Remove headlamp. See this section.
Motor - headlamp levelling – Remove headlamp. See this section.

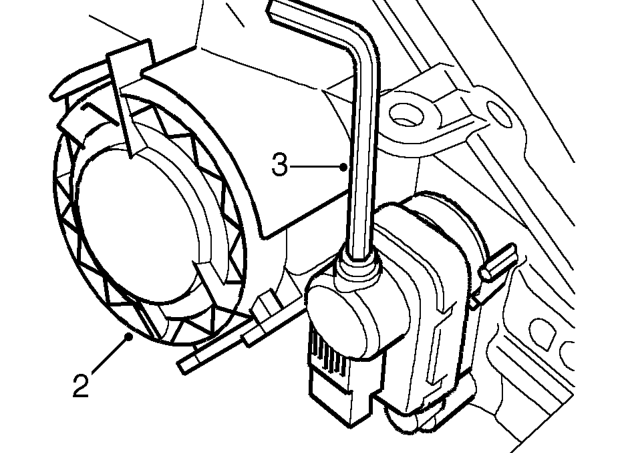

  1. Remove headlamp bulb access cover.
  2. Rotate headlamp adjuster clockwise to fully extend motor link rod.
Motor - headlamp levelling – Rotate headlamp adjuster clockwise to fully extend motor link rod.

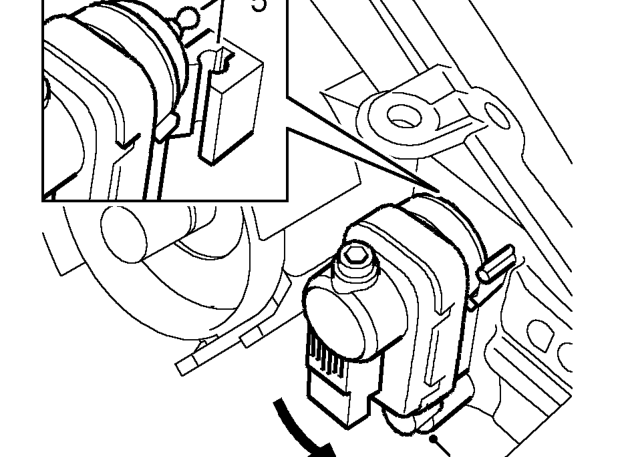

  1. Rotate motor assembly 45° to release from headlamp casing.
  2. Lift motor to release link rod ball end from its location in rear of headlamp lens and remove motor.
