Central door locking (cdl) ECU

CENTRAL DOOR LOCKING (CDL) ECU

Service repair no - 86.26.01

The central door locking system and the Anti-theft alarm are controlled by a common ECU. Refer to the Anti-theft alarm ECU for further details. See this section.

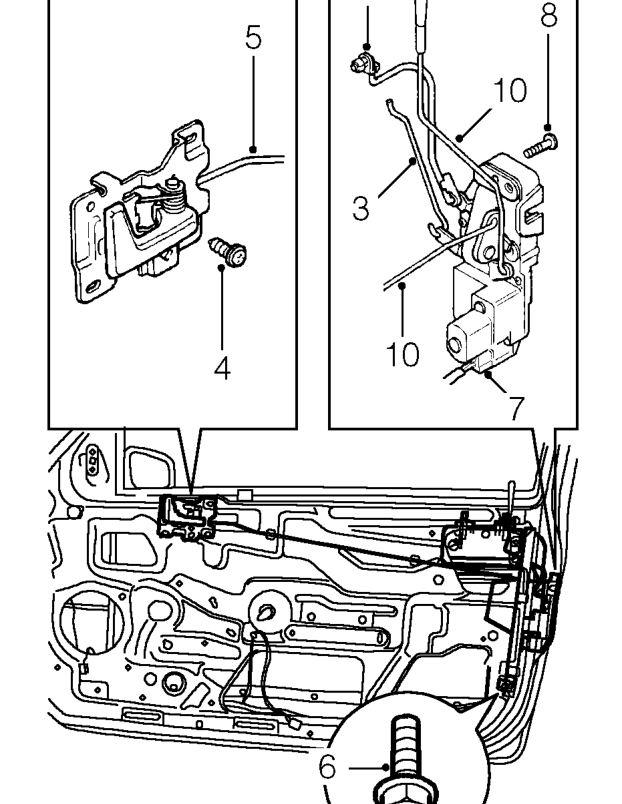

FRONT DOOR LOCK MOTOR

Service repair no - 86.26.08

Remove

1. Remove front door outside handle. See BODY, Exterior fittings.

2. Release clip and remove outside handle control rod from latch.
3. Release private lock control rod from latch.
4. Remove 3 screws securing inside door handle to door.
5. Release inside door handle control rod from handle.
6. Remove bolt securing door glass rear channel to door.
7. Disconnect multiplug from lock.
8. Remove 3 Torx screws securing latch to door.
9. Push rear channel forward and remove latch from door.
10. Remove inside door handle and sill button control rod from latch.
