RADIO

Service repair no - 86.50.03

Remove

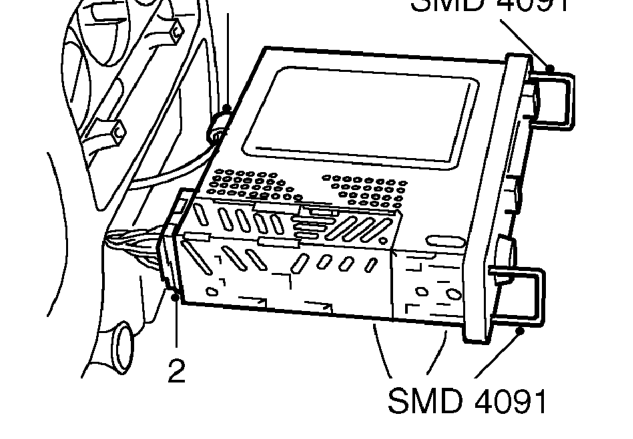

Radio – Service repair no - 86.50.03
  1. Fit radio removal tools SMD 4091 to release retaining clips. Pull on tool to release radio from fascia.
  2. Disconnect multiplugs and aerial lead. Remove radio.

Refit

  1. Position radio to aperture. Connect multiplugs and aerial lead.
  2. Slide radio into fascia until retaining clips engage.
  3. Enter security code and check radio for correct operation.

REAR SPEAKER

Service repair no - 86.50.12

Remove

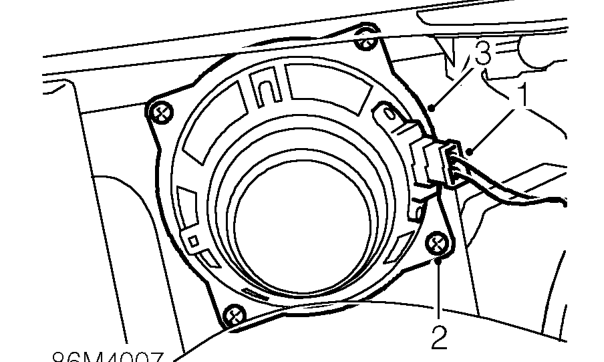

Rear speaker – Service repair no - 86.50.12
  1. Disconnect multiplug from rear speaker.
  2. Remove 4 screws securing rear speaker to parcel tray support panel.
  3. Remove speaker.

Refit

  1. Position speaker to parcel tray support panel and fit and tighten screws.
  2. Connect multiplug to speaker.
