PASSENGER COMPARTMENT FUSE BOX

Service repair no - 86.70.04

Remove

  1. Disconnect battery earth lead.

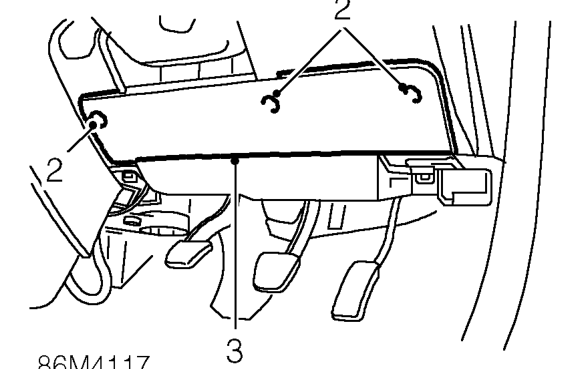

Passenger compartment fuse box – Disconnect battery earth lead.
  1. Release 3 turnbuckles securing fuse box cover to fascia.
  2. Remove fuse box cover.

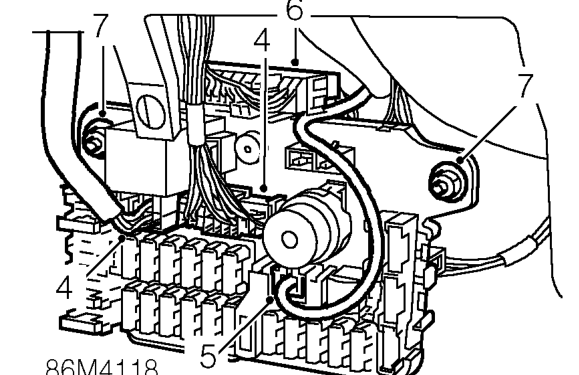

Passenger compartment fuse box – Remove fuse box cover.
  1. Disconnect 2 starter switch multiplugs from fuse box.
  2. Disconnect SRS multiplug from fusebox.
  3. Release multiplug secured to top edge of fuse box.
  4. Remove 2 nuts securing fuse box to mounting bracket.

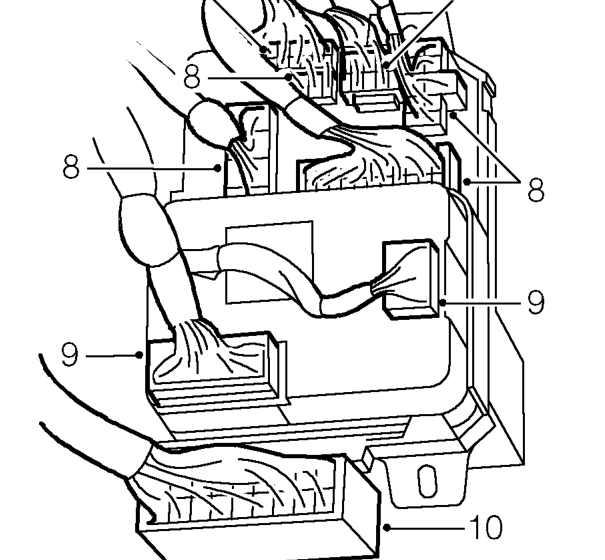

Passenger compartment fuse box – Remove 2 nuts securing fuse box to mounting bracket.
  1. Disconnect 6 multiplugs from rear of fuse box.
  2. Disconnect 2 multiplugs from ICU.
  3. Release satellite fuse box from fuse box.
  4. Remove passenger compartment fuse box.

Refit

  1. Position passenger compartment fuse box and secure satellite fuse box to it.
  2. Connect multiplugs to ICU.
  3. Connect multiplugs to rear of fuse box.
  4. Position fuse box to mounting bracket and secure with nuts.
  5. Connect SRS multiplug to fuse box.
  6. Connect starter switch multiplugs to fuse box.
  7. Secure multiplug to top of fuse box.
  8. Fit fuse box cover and secure with turnbuckles.
  9. Connect battery earth lead.
