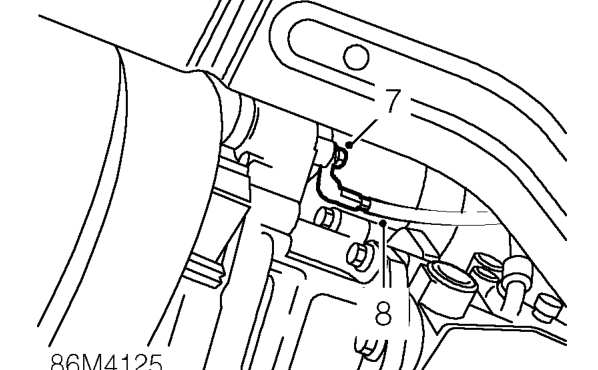

7. Remove nut securing earth lead to starter motor lower mounting bolt.

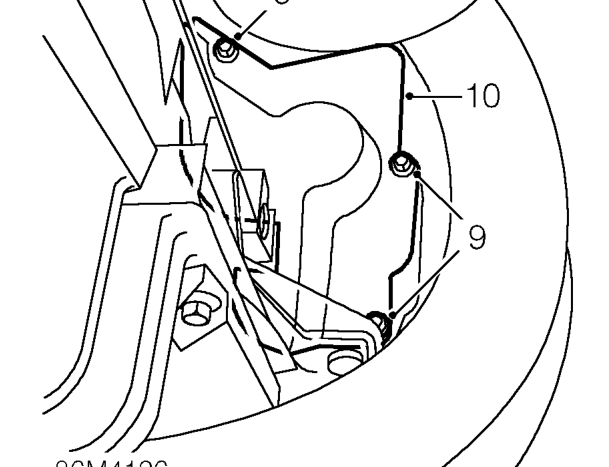

8. Release earth lead from mounting bolt.

9. Remove 3 bolts securing starter motor closing plate to gearbox.

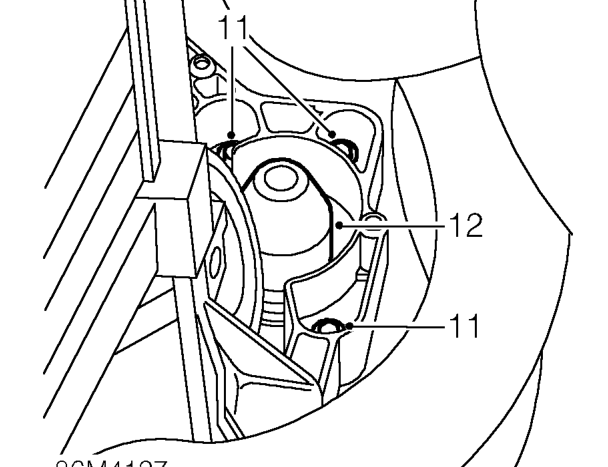

10. Remove closing plate.

11. Remove 3 bolts securing starter motor to gearbox.
12. Remove starter motor.

Refit

1. Position starter motor to gearbox.
2. Fit bolts securing starter motor to gearbox and tighten to 25 Nm.
3. Position closing plate to gearbox and secure with bolts. Tighten bolts to 9 Nm.
4. Fit earth lead to starter motor lower mounting bolt and tighten nut to 10 Nm.
5. Connect Lucar to starter solenoid.
6. Connect battery positive lead to starter solenoid.
7. Fit NEW spring washer and tighten nut securing battery positive lead to starter solenoid.
8. Lubricate ’O’ ring with gearbox oil and fit to dipstick tube.
9. Fit dipstick tube to gearbox.
10. Fit bolt securing dipstick tube to gearbox and tighten to 25 Nm.
11. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
